60-100V Buck Converter
HOME>PRODUCTS>DC-DC power supply chip>60-100V Buck Converter

  • Model No. :

    CX8901X

  • Withstand voltage :

    120V

  • Output voltage :

    ADJ

  • Output current :

    10A

  • Working mode :

  • Packaging :

    ESOP-8L
Free Sample
Datesheet

CATEGORY
  • product details

Overview

The CX8901X series are wide-input voltage switching buck DC-DC controllers supporting input voltages up to 120V.

The CX8901X features low standby power consumption, high efficiency, low ripple, and excellent bus voltage regulation and load regulation.

The CX8901X supports high-current output, capable of delivering over 10A.

The output voltage can be set by configuring the voltage divider resistors on the FB pin.

The CX8901X series employs fixed-frequency PWM control with a typical switching frequency of 100kHz. It enters skip-cycle mode during light loads to achieve high conversion efficiency. The CX8901X series integrates soft-start, over-temperature protection, output short-circuit protection, current limiting, and cycle-by-cycle current detection internally, enhancing system reliability. Packaged in ESOP-8L, the CX8901X series features minimal external components and is ideal for wide-input, high-power DC-DC buck applications.


Features

  • Zero-power shutdown via enable pin

  • Wide input voltage range: 10V to 120V

  • Minimal external components

  • Supports output currents exceeding 10A with external MOSFETs

  • Output short-circuit lockout protection / Output short-circuit hiccup protection (adjustable)

  • Over-temperature protection

  • Cycle-by-cycle current limiting

  • Flexible output voltage adjustment

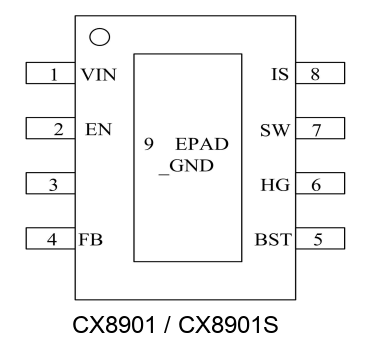

  • ESOP-8L package



Applications

  • Electric vehicle converters

  • Motorcycle converters

  • Fast charging power supplies

  • Non-isolated DC-DC converters

  • Inverter systems

  • Industrial control systems

  • Non-isolated PoE, IP cameras
