  • 型 号 :

    CX2935

  • 保护功能 :

    OVP/UVLO/OCP/OTP

  • 内置MOS Rds(on) :

    Dual C-port buck protocol chip

  • 支持协议 :

    QC2.0/3.0/CHARGE TURBO 27WFCP/SCP/HVSCP/AFC /VOOC 2.0/4.0/联发科 PE 协议/ USB BC1.2 DCP/Apple 2.4A 充电规范

  • 典型应用 :

    5V、9V、12V、15V、 20V

  • 封 装 :

    QFN4x4-16L
样品申领
产品规格书下载

CATEGORY
  • 产品详情

Summary:

CX2935 is an integrated synchronous switch buck converter that supports multiple output fast charging protocols, USB Type-C and PD protocols, Qualcomm QC2.0/3.0/3.0+, Huawei FCP/SCP/HVSCP, VOOC 2.0/4.0 protocol, MediaTek PE, Samsung AFC, USB BC1.2 DCP, and Apple 2.4A charging specifications. It is designed for car chargers, various fast charging adapters Provide a complete solution for power supply equipment such as intelligent row and plug.

CX2935 has the function of automatically identifying the VIN input voltage and adjusting the output voltage based on the input voltage. The CX2935 has a built-in power MOS, with an input working voltage of Z up to 31V and an output voltage range of 3.3V to 21V. It can provide an output power of Z up to 65W and can automatically adjust the output voltage and current according to the recognized fast charging protocol.

The output of CX2935 has CV/CC characteristics. When the output current is less than the set value, it outputs in CV mode and the output voltage is constant; When the output current is greater than the set value, output CC mode and output voltage decrease.

The output voltage of CX2935 has a wired compensation function, and as the output current increases, it will correspondingly increase the output voltage to compensate for the voltage drop caused by the impedance of the connecting line.

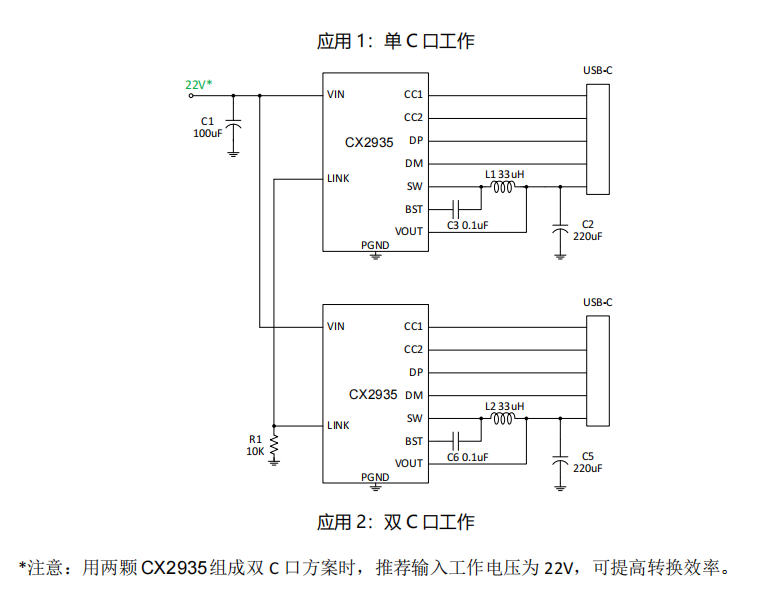

CX2935 specifically integrates LINK ™ Patented technology for internet communication. Through LINK ™ The interconnection function can be easily and flexibly applied to multiple Type-C port charging schemes.

CX2935 supports secondary burning and can be upgraded online.

CX2935 has multiple protection functions, including input overvoltage and undervoltage protection, output short-circuit and overcurrent protection, and over temperature protection.

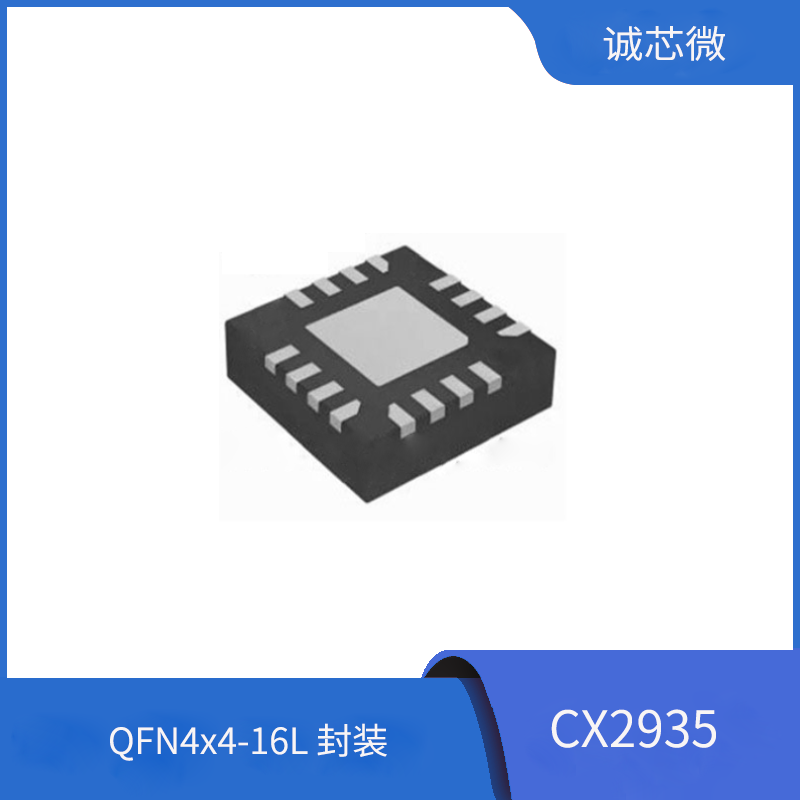

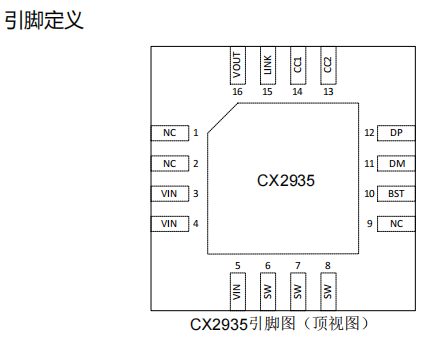

CX2935 is packaged in QFN4x4-16L.

Characteristic:

  • Synchronous switch step-down converter

  • Built-in power MOS

  • Automatically recognize input voltage and adjust output voltage

  • Input working voltage up to 31V - Output voltage range: 3.3V to 21V, automatically adjusted according to fast charging protocol

  • Output power Z greater than 65W - output voltage wired compensation function: 50mV/A

  • 100mV/A, 150mV/A - output with CV/CC characteristics

  • Soft start function

  • 3A load start

  • LINK intelligent power reduction

  • Supports USB Power Delivery (PD) 3.1 protocol

  • -FPDO can be configured: 5V, 9V, 12V, 15V, 20V

  • -APDO configurable: 5V Prog, 9V Prog, 15V Prog, 20V Prog

  • -APDO adjusts voltage in 20mV steps

  • -APDO current Z can support up to 5A

  • Output fast charging

  • -Support for Quick Charge 2.0/3
