USB intelligent identification IC
HOME>PRODUCTS>Fast charging protocol chip>USB intelligent identification IC

  • 型 号 :

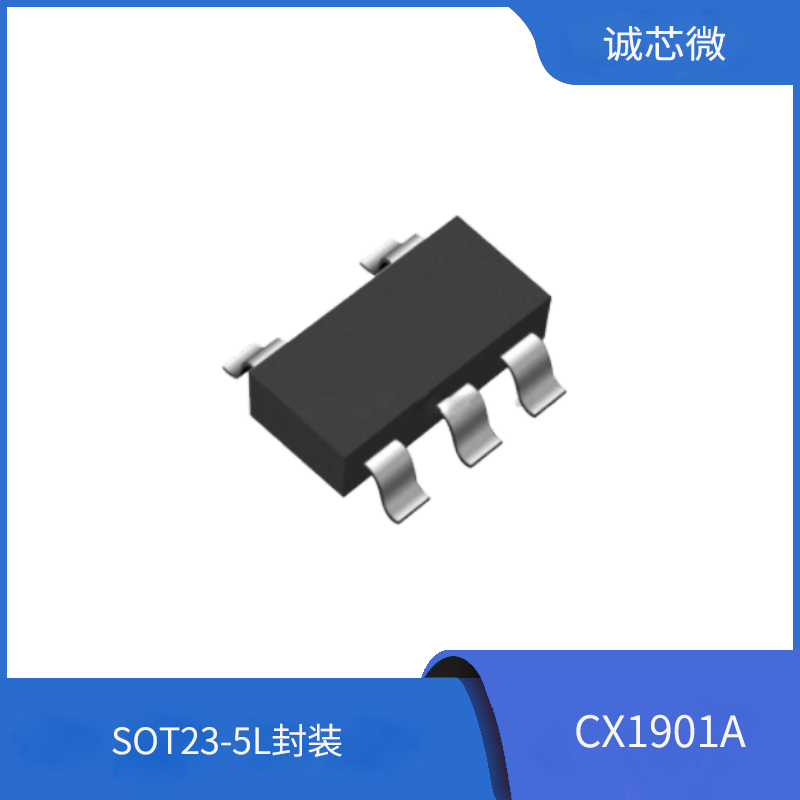

    CX1901A

  • 保护功能 :

    Dual channel USB intelligent recognition IC

  • 内置MOS Rds(on) :

    Single Port Control Function (CX1901A)

  • 支持协议 :

    Divider1 charging protocol (exclusive to Apple), D+/D-set 1.2V mode (exclusive to Samsung), BC1.2DCP, and CTIS YD/T 1591-2009 charging protocol

  • 典型应用 :

    Portable charger, car charger

  • 封 装 :

    SOT23-5L
样品申领
产品规格书下载

CATEGORY
  • 产品详情

Summary:

CX1901A is a USB charging protocol port control IC that can automatically identify the type of charging device and shake hands with the device through the corresponding USB charging protocol to obtain the maximum charging current, saving charging time while protecting the charging device.

Characteristic:

  • Working voltage: 4.5V~5.5V

  • Single Port Control Function (CX1901A)

  • Supports multiple USB charging protocols, and each charging protocol automatically switches,

  • include:

     ☆ Divider1 charging protocol (Apple specific)

     ☆ D+/D-set to 1.2V mode (exclusive to Samsung)

     ☆ BC1.2DCP and CTIS YD/T 1591-2009 Charging Protocol

  • Reliable power on reset (POR) and low voltage reset (LVR) performance

  • Packaging form: SOT23-5L

Application:

  • portable source

  • Portable charger

  • Car charger
