CX8831CXWithstand voltage :
40VOutput voltage :
5-20VOutput current :
45W powerWorking mode :
Packaging :

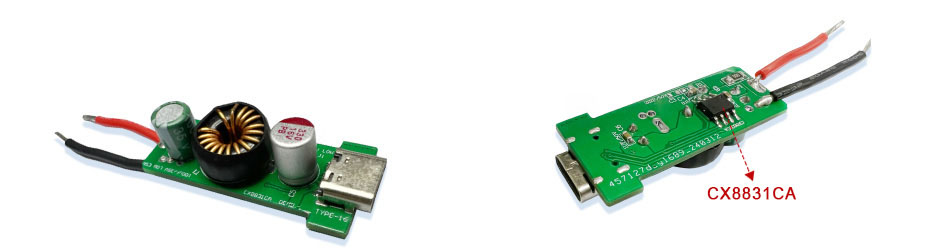

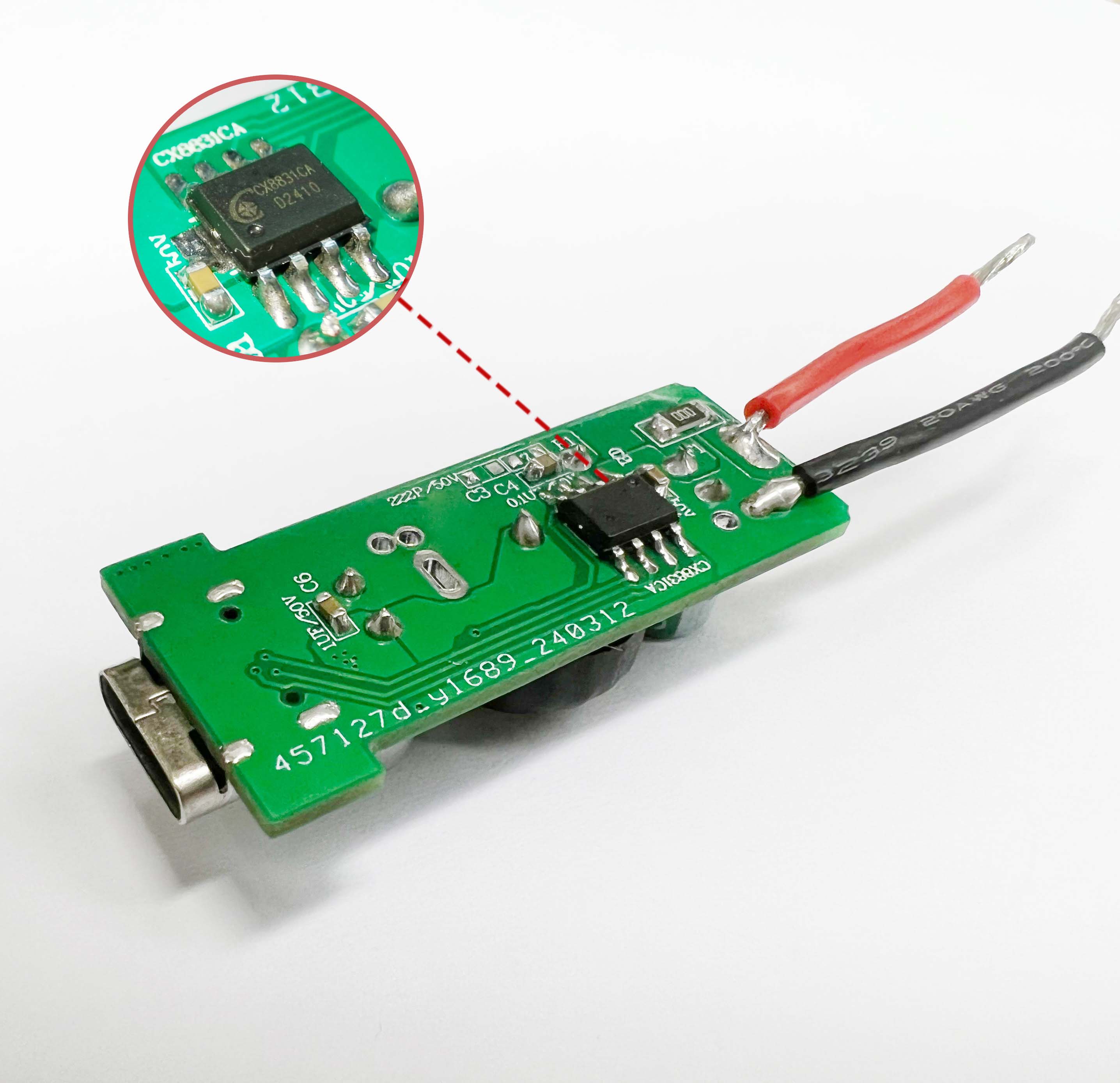

ESOP-8L/QFN4x4CX8831CX is a buck SoC chip integrated with multi fast charging protocols. It is packaged in ESOP-8L,
and a synchronous buck converter is integrated inside the chip.
Support USB Type-C and PD3.1 protocols, Qualcomm QC2.0/3.0/3.0+ protocols, Huawei FCP/SCP/HVSCP
protocols, and VOOC protocols.
Support MediaTek PE2.0 protocol, MTK PE fast charging, Samsung AFC protocol, USB BC1.2 DCP protocol
and Apple2.4A charging specification.
Provide a complete solution for power supply equipment such as vehicle charging port, various fast charging
adapters, intelligent plug-in and so on.
CX8831CX adopts COT control mode, with built-in current sampling circuit and ripple compensation circuit.
Built-in double N-type low impedance power switch tube.
CX8831CX has an input working voltage of up to 36V and an output voltage range of 3.3V to 21V, which can
provide a maximum output power of 45W.
CX8831CX adjusts the output voltage and current according to the identified fast charging protocol.
CX8831CX can adapt the input voltage and automatically adjust the output power according to the input voltage.
The output of CX8831CX has CV/CC characteristics. When the output current is less than the set value, the CV
mode is output and the output voltage is constant. When the output current is greater than the set value, the
CC mode is output and the output voltage is reduced.
CX8831CX has the function of cable compensation, which increases the output voltage with the increase of
output current to compensate the voltage drop caused by cable impedance.

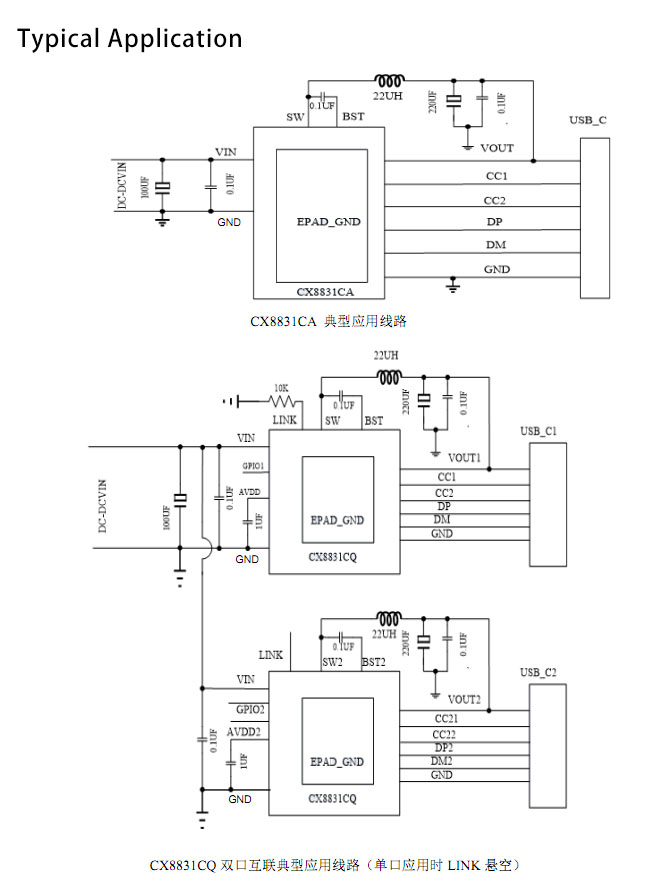

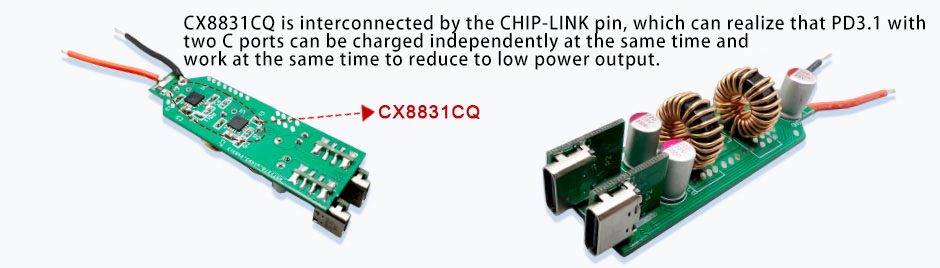

CX8831CQ can realize high-power operation of two USB-C ports independently through CHIP-LINK, and
reduce to low-power output at the same time.
When one USB-C port works within 5V/200mA(1W), the other USB-C port can realize high power output.
CX8831CX supports secondary burning and can realize online upgrade.
CX8831CX Characteristic:
Synchronous switching buck converter
Input working voltage range 6-36V
The conversion efficiency is as high as 97%
Support CV/CC mode
Support soft start and full load start.
Support line loss compensation function
Support cable communication with internal resistance up to 180mΩ.
Support online upgrade
Have multiple security protection.
Overvoltage/undervoltage protection
Over-current protection and short-circuit protection
Over-temperature power drop and secondary over-temperature protection
ESD characteristics ±4KV
Support chip-link dynamic power allocation
Support automatic power distribution of Apple devices in 4th gear.
Support dual-port light load working mode
Support USB power delivery (PD)3.1.
FPDO can be configured: 5V/9V/12V/15V/20V.
OUT MAX: 45W
APDO configurable: 5V/9V/15V/20V Prog.
Support a variety of fast charging protocols
Quick Charge 2.0/3.0/3.0+
Xiaomi CHARGE TURBO 27W protocol
Huawei FCP/HVSCP protocol (supporting Huawei first)
Samsung AFC5V/9V/12V protocol
OPPO VOOC protocol
MTK PE2.0 protocol
Mainly used in:
Multi-port fast charger
USB charging equipment
Outdoor energy storage equipment
CX7539F is a high-performance synchronous rectification control circuit for the secondary side of switching power supply. In the application of low-voltage and high-current switching power supply, it can easily meet the energy efficiency of class 6, and is an ideal solution for ultra-low conduction voltage drop rectifier devices. The chip can support switching frequency applications as high as 150kHz, as well as switching power mode applications such as CCM/QR/DCM. The loss caused by its extremely low turn-on voltage drop is far less than the turn-on loss of Schottky diode, which greatly improves the conversion efficiency of the system and greatly reduces the temperature of the rectifier device.<br/><br/>CX7539F is a synchronous rectifier switch with built-in high voltage NMOSFET, and it has extremely low internal resistance, which can provide the application output of the system up to 5 years. IC determines the switching state of integrated MOSFET by detecting its source-drain voltage, which is compatible with flyback converters in continuous mode, discontinuous mode and quasi-resonant mode.<br/><br/>CX7539F adopts special self-power supply technology, which can ensure that the chip will not work under voltage in both constant current and constant voltage working states of the primary control system.
CX7538BS is a high-performance secondary side synchronous rectification control circuit for switch-mode power <br/><br/>supplies. It easily meets the Level VI energy efficiency requirements in low-voltage, high-current switch-mode power <br/><br/>supply applications, making it an ideal solution for ultra-low forward voltage drop rectification devices. It also supports <br/><br/>various operating modes of switch-mode power supplies, such as CCM, QR , and DCM . Its extremely low forward <br/><br/>voltage drop results in much less conduction loss compared to Schottky diodes, greatly improving the system's <br/><br/>conversion efficiency and significantly reducing the temperature of the rectification device.<br/><br/><br/><br/>The CX7538BS chip features an NMOSFET synchronous rectification switch with a built-in voltage tolerance of 60V <br/><br/>and an extremely low internal resistance, with a typical RdsON as low as 12mΩ, providing the system with an output <br/><br/>capability up to 4A. The chip determines its switching state by detecting the source-drain voltage of the built-in <br/><br/>MOSFET, making it compatible with flyback converters in continuous mode, discontinuous mode, and quasi-resonant <br/><br/>operation modes.
80V输入，1.5A输出，异步降压转换器&amp;amp;amp;amp;amp;lt;br/&amp;amp;amp;amp;amp;gt;概述：&amp;amp;amp;amp;amp;lt;br/&amp;amp;amp;amp;amp;gt;CX8803是一款输入电压达9V至80V的高电压非同步降压转换器。&amp;amp;amp;amp;amp;lt;br/&amp;amp;amp;amp;amp;gt;CX8803集成了一个100V400-mΩ的高压侧MOSFET。&amp;amp;amp;amp;amp;lt;br/&amp;amp;amp;amp;amp;gt;CX8803可提供1.5A的连续负载电流，效率高达95%。&amp;amp;amp;amp;amp;lt;br/&amp;amp;amp;amp;amp;gt;CX8803采用内置补偿的固定频率峰值电流控制，无需使用外部元件。&amp;amp;amp;amp;amp;lt;br/&amp;amp;amp;amp;amp;gt;高端MOSFET的逐周期电流限制可在过载情况下保护转换器。&amp;amp;amp;amp;amp;lt;br/&amp;amp;amp;amp;amp;gt;如果过电流状况持续时间超过目前的时间，就会触发打嗝模式保护。&amp;amp;amp;amp;amp;lt;br/&amp;amp;amp;amp;amp;gt;CX8803...
CX8836是一款具有宽输入电压：DC4.5V-40V,宽输出电压：DC3V-25V 的四开关同步升降压控制芯片;<br/><br/>CX8836在降压和升压操作模式下均采用电流模式控制，以实现卓越的负载调整能力。<br/><br/>CX8836支持频率可调，软启动可调。<br/><br/>CX8836内置多种保护功能，包括逐周期限流、输入欠压锁定（UVLO）、输出过电压保护（OVP）和过温保护等保证在不同使用环境下产品安全。
概述:&amp;lt;br/&amp;gt;CX75GD080S是一款集成高压GaNFET功率器件高频高性能准谐振式交直流转换功率开关，应用于27W内高性能、低待机功率、低成本、高效率的隔离型反激式开关电源。&amp;lt;br/&amp;gt;CX75GD080S的工作频率最高可达200KHZ，可全范围工作在准谐振模式，在轻载时则会工作于burst模式以提升效率, 将23kHz以下的音调能量降至最低，并在操作过程中消除音频噪声.&amp;lt;br/&amp;gt;CX75GD080S集成了完备的保护功能，包括：Vcc欠压保护（UVLO）,Vcc过压保护（Vcc_OVP）,输入欠压保护...
A single chip of CX8831CB integrates the synchronous buck DC-DC+ fast charging protocol, which minimizes
the number of components outside the chip, effectively optimizes the BOM cost of the scheme, and provides
customers with a DC...
概述：&lt;br/&gt;CX75GD025E是一款集成高压GaNFET功率器件高频高性能准谐振式交直流转换功率开关，应用于45W内高性能、低待机功率、低成本、高效率的隔离型反激式开关电源。&lt;br/&gt;CX75GD025E的工作频率最高可达200KHZ，可全范围工作在准谐振模式，在轻载时则会工作于burst模式以提升效率, 将23kHz以下的音调能量降至最低，并在操作过程中消除音频噪声。&lt;br/&gt;CX75GD025E集成了完备的保护功能，包括：Vcc欠压保护（UVLO）,Vcc过压保护（Vcc_OVP）,输入欠压保护...
CX75GD015E is a high-frequency and high-performance quasi-resonant AC-DC conversion power switch with integrated high-voltage GaNFET power device, which is applied to isolated flyback switching power supply with high performance, low standby power, low cost and high efficiency within 65W.<br/><br/>The working frequency of CX75GD015E can reach 200KHZ at most, and it can work in quasi-resonant mode in the whole range. Under light load, it will work in burst mode to improve efficiency, minimize the tone energy below 23kHz, and eliminate audio noise during operation.<br/><br/>CX75GD015E integrates complete protection functions, including: Vcc undervoltage protection (UVLO),Vcc overvoltage protection (Vcc_OVP), input undervoltage protection (Brown in), input overvoltage protection (Brown out), output overvoltage protection (VO_OVP), FB open and short circuit protection, secondary side SR short circuit protection, CS open and short circuit protection, etc.<br/><br/>CX75GD015E provides excellent electromagnetic interference performance, and provides a good design platform for a cost-effective flyback switching power supply system that requires ultra-low standby power consumption
