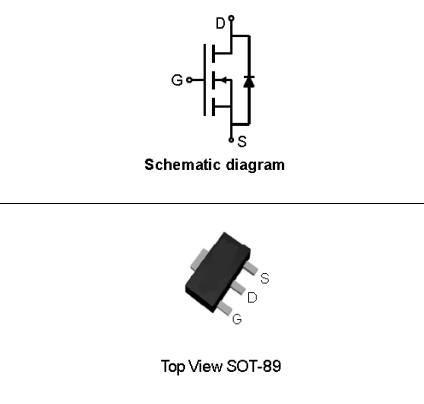

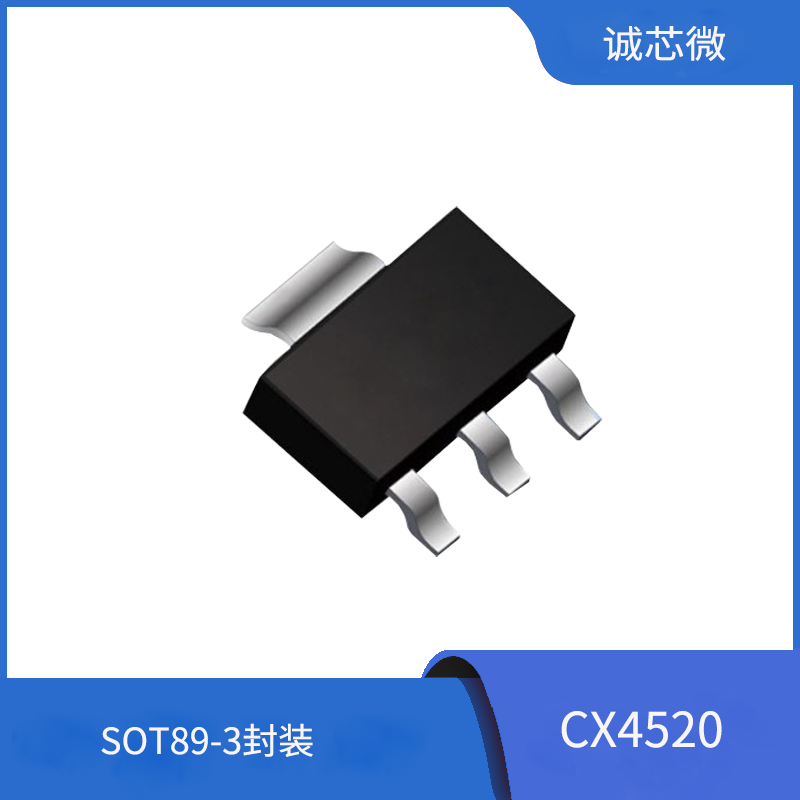

CX4520, N-channel MOS transistor, 45V withstand voltage 30A, SOT89-3 packaging, commonly used in PWM applications, load switches, power management, and more.
RDS(ON) <22mΩ @ VGS=4.5V
RDS(ON) <15mΩ @ VGS=10V
Overview<br/><br/>The CX8360 is a 30V/6A DC-DC buck converter with integrated dual N-channel power transistors. It employs an advanced COT architecture, enabling the chip to deliver high-performance load response and input voltage regulation capability.&lt;b...
Overview<br/>The CX8560 is a wide-input voltage switching buck DC-DC converter capable of operating in either CV (constant voltage) or CC (constant current) mode. It features a maximum input voltage rating of 66V and operates within an input voltage range...
Overview
The CX8901X series are wide-input voltage switching buck DC-DC controllers supporting input voltages up to 120V.
The CX8901X features low standby power consumption, high efficiency, low ripple, and excellent bus voltage regulation and loa...
CX7539F is a high-performance synchronous rectification control circuit for the secondary side of switching power supply. In the application of low-voltage and high-current switching power supply, it can easily meet the energy efficiency of class 6, and is an ideal solution for ultra-low conduction voltage drop rectifier devices. The chip can support switching frequency applications as high as 150kHz, as well as switching power mode applications such as CCM/QR/DCM. The loss caused by its extremely low turn-on voltage drop is far less than the turn-on loss of Schottky diode, which greatly improves the conversion efficiency of the system and greatly reduces the temperature of the rectifier device.<br/><br/>CX7539F is a synchronous rectifier switch with built-in high voltage NMOSFET, and it has extremely low internal resistance, which can provide the application output of the system up to 5 years. IC determines the switching state of integrated MOSFET by detecting its source-drain voltage, which is compatible with flyback converters in continuous mode, discontinuous mode and quasi-resonant mode.<br/><br/>CX7539F adopts special self-power supply technology, which can ensure that the chip will not work under voltage in both constant current and constant voltage working states of the primary control system.
CX7538BS is a high-performance secondary side synchronous rectification control circuit for switch-mode power <br/><br/>supplies. It easily meets the Level VI energy efficiency requirements in low-voltage, high-current switch-mode power <br/><br/>supply applications, making it an ideal solution for ultra-low forward voltage drop rectification devices. It also supports <br/><br/>various operating modes of switch-mode power supplies, such as CCM, QR , and DCM . Its extremely low forward <br/><br/>voltage drop results in much less conduction loss compared to Schottky diodes, greatly improving the system's <br/><br/>conversion efficiency and significantly reducing the temperature of the rectification device.<br/><br/><br/><br/>The CX7538BS chip features an NMOSFET synchronous rectification switch with a built-in voltage tolerance of 60V <br/><br/>and an extremely low internal resistance, with a typical RdsON as low as 12mΩ, providing the system with an output <br/><br/>capability up to 4A. The chip determines its switching state by detecting the source-drain voltage of the built-in <br/><br/>MOSFET, making it compatible with flyback converters in continuous mode, discontinuous mode, and quasi-resonant <br/><br/>operation modes.
80V输入，1.5A输出，异步降压转换器&amp;amp;amp;amp;amp;lt;br/&amp;amp;amp;amp;amp;gt;概述：&amp;amp;amp;amp;amp;lt;br/&amp;amp;amp;amp;amp;gt;CX8803是一款输入电压达9V至80V的高电压非同步降压转换器。&amp;amp;amp;amp;amp;lt;br/&amp;amp;amp;amp;amp;gt;CX8803集成了一个100V400-mΩ的高压侧MOSFET。&amp;amp;amp;amp;amp;lt;br/&amp;amp;amp;amp;amp;gt;CX8803可提供1.5A的连续负载电流，效率高达95%。&amp;amp;amp;amp;amp;lt;br/&amp;amp;amp;amp;amp;gt;CX8803采用内置补偿的固定频率峰值电流控制，无需使用外部元件。&amp;amp;amp;amp;amp;lt;br/&amp;amp;amp;amp;amp;gt;高端MOSFET的逐周期电流限制可在过载情况下保护转换器。&amp;amp;amp;amp;amp;lt;br/&amp;amp;amp;amp;amp;gt;如果过电流状况持续时间超过目前的时间，就会触发打嗝模式保护。&amp;amp;amp;amp;amp;lt;br/&amp;amp;amp;amp;amp;gt;CX8803...
CX8836是一款具有宽输入电压：DC4.5V-40V,宽输出电压：DC3V-25V 的四开关同步升降压控制芯片;<br/><br/>CX8836在降压和升压操作模式下均采用电流模式控制，以实现卓越的负载调整能力。<br/><br/>CX8836支持频率可调，软启动可调。<br/><br/>CX8836内置多种保护功能，包括逐周期限流、输入欠压锁定（UVLO）、输出过电压保护（OVP）和过温保护等保证在不同使用环境下产品安全。
概述:&amp;lt;br/&amp;gt;CX75GD080S是一款集成高压GaNFET功率器件高频高性能准谐振式交直流转换功率开关，应用于27W内高性能、低待机功率、低成本、高效率的隔离型反激式开关电源。&amp;lt;br/&amp;gt;CX75GD080S的工作频率最高可达200KHZ，可全范围工作在准谐振模式，在轻载时则会工作于burst模式以提升效率, 将23kHz以下的音调能量降至最低，并在操作过程中消除音频噪声.&amp;lt;br/&amp;gt;CX75GD080S集成了完备的保护功能，包括：Vcc欠压保护（UVLO）,Vcc过压保护（Vcc_OVP）,输入欠压保护...
