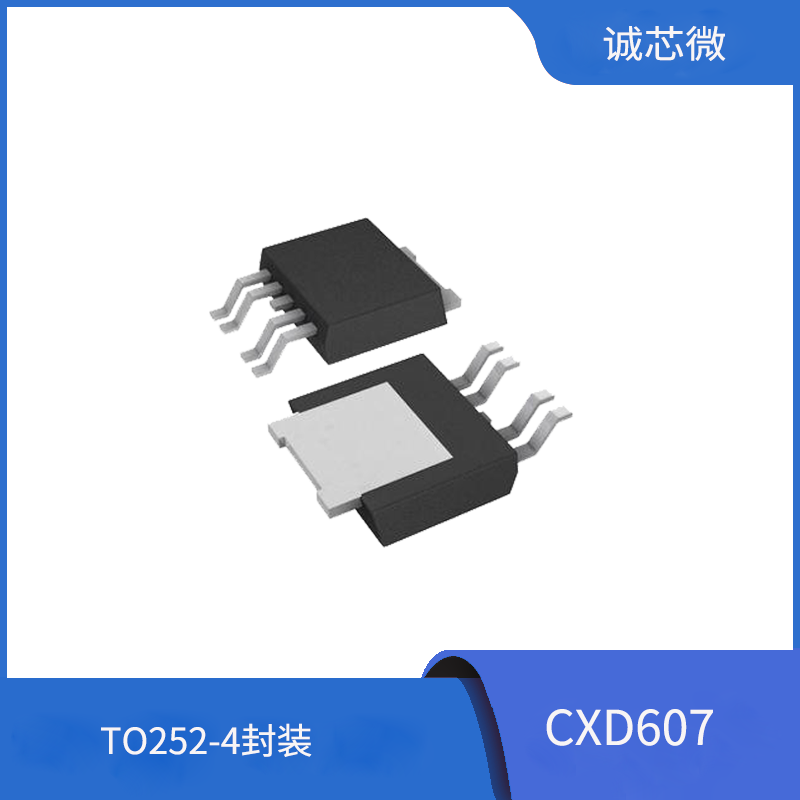

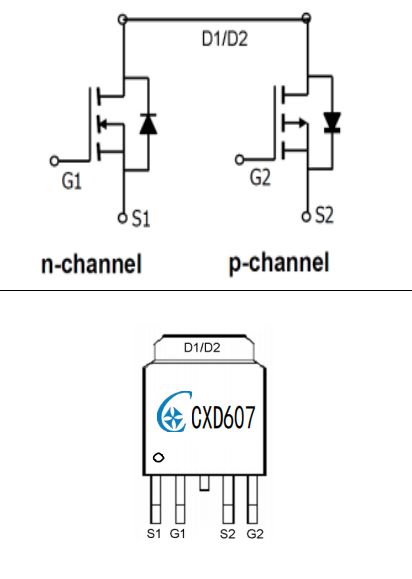

CXD607, N+P dual channel MOS transistor, 30V withstand voltage 12A/-30V, -12A, TO252-4 packaging, mostly used for car charging, BMS, motor drive, PD charger, etc.
Specific parameters:
N P
VDS (V) = 30V -30V
ID = 12A (VGS=10V) -12A (VGS = -10V)
RDS(ON) RDS(ON)
< 29 mΩ (VGS=10V) < 55 mΩ (VGS = -10V)
< 40 mΩ (VGS=4.5V) < 68 mΩ (VGS = -4.5V)
