Summary:

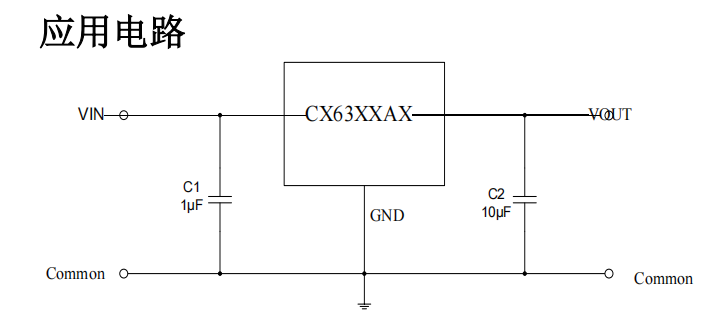

CX63XXAX series is manufactured using CMOS technology, with a maximum input voltage of 36V. This series is a high-voltage linear regulator with multiple fixed output voltages.

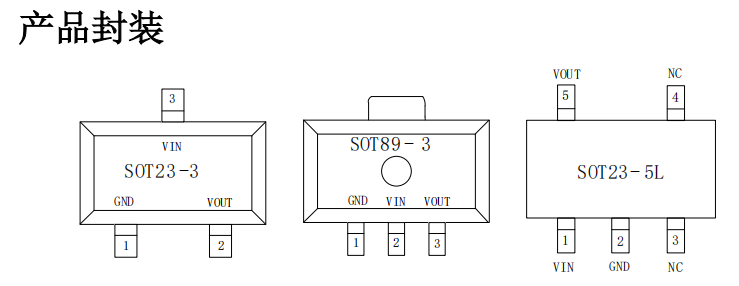

CX63XXAX series has 3 packaging forms and 9 pin arrangements, making it more convenient for customers to layout their PCB boards.
Features:
High input voltage: 36V
Output current: 250mA
Multiple pin arrangements
High precision output voltage: ± 2%
Fixed output voltage: 3V, 3.3V, 5V
Product Usage:
Power supply equipment for batteries and other power sources
Communication equipment
Audio/Video Devices
Security monitoring equipment
