Overview:
CX715 is a highly integrated current mode PWM controller, optimized for high performance, low standby power consumption adapter solutions.The circuit is also compatible with cost-effective offline flyback converter applications .
At full loading, the IC operates in fixed frequency mode.
When the loading goes low, it operates in Green mode with valley switching for high power conversion efficiency can be achieved in the whole loading range.
CX715 offers complete protection coverage, including cycle-by-cycle current limiting (OCP), overload protection (OLP), ove temperature protection (OTP), output short current protection (SCP), output and VDD over voltage protection (OVP & VDD OVP). Excellent EMI performance is achieved . The tone energy below 22 kHz is minimized to avoid audio noise during operation.

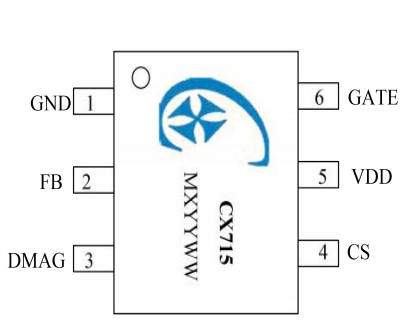

CX715 is offered in a SOT23-6 package.
Features:
l Multi-Mode Operation
l 100kHz fixed frequency mode @ Full Load
l Valley switching operation @ Green mode
l Burst Mode @ Light Load and No Load
l Adaptive loop gain compensation with Iovp current detection
l Ultra low operation current at light and no load
l Internal OCP compensation for universal line voltage
l Extend burst mode control for improved efficiency and low standby power
l Power on soft start reducing MOSFET VDS stress
l Frequency shuffling for EMI
l Audio noise free operation
l Comprehensive protection coverage
l VDD under voltage lockout with hysteresis (UVLO)
l Cycle-by-cycle over current protection (OCP) with auto recovery
l External over temperature protection (EXT_OTP)
l VDD over voltage protection
l Output over voltage protection
l Output short current protection (SCP) with auto recovery
l Brownout protection with auto recovery
l Output diode short protection with auto recovery
Applications
Battery chargers adapters
Adapters Set-Top Box
Power supply
CX7538BS is a high-performance secondary side synchronous rectification control circuit for switch-mode power <br/><br/>supplies. It easily meets the Level VI energy efficiency requirements in low-voltage, high-current switch-mode power <br/><br/>supply applications, making it an ideal solution for ultra-low forward voltage drop rectification devices. It also supports <br/><br/>various operating modes of switch-mode power supplies, such as CCM, QR , and DCM . Its extremely low forward <br/><br/>voltage drop results in much less conduction loss compared to Schottky diodes, greatly improving the system&#039;s <br/><br/>conversion efficiency and significantly reducing the temperature of the rectification device.<br/><br/><br/><br/>The CX7538BS chip features an NMOSFET synchronous rectification switch with a built-in voltage tolerance of 60V <br/><br/>and an extremely low internal resistance, with a typical RdsON as low as 12mΩ, providing the system with an output <br/><br/>capability up to 4A. The chip determines its switching state by detecting the source-drain voltage of the built-in <br/><br/>MOSFET, making it compatible with flyback converters in continuous mode, discontinuous mode, and quasi-resonant <br/><br/>operation modes.
Overview
The CX78GD024E is a quasi-resonant flyback power conversion chip with integrated D-GaN, designed for isolated flyback switching power supplies targeting high performance, low standby power, low cost, and high efficiency within 68W.
...
OverviewCX8831CA is a synchronous step‑down converter integrating multiple fast‑charging protocols. It supports USB Type‑C, PD3.2 and PPS protocols, Qualcomm QC2.0/3.0/3.0+, Huawei FCP/SCP/HVSCP, VOOC, MediaTek PE2.0, Samsung AFC, USB BC1.2 DCP, and Apple...
OverviewThe 8831C is a synchronous step‑down converter integrating multiple fast‑charging protocols. It supports USB Type‑C, PD3.2 and PPS protocols, Qualcomm QC2.0/3.0/3.0+, Huawei FCP/SCP/HVSCP, VOOC, MediaTek PE2.0, Samsung AFC, USB BC1.2 DCP, and Appl...
Overview &lt;br/&gt;The CX8823B is a feature-rich, high-performance, highly reliable DC-DC buck converter. &lt;br/&gt;The CX8823B has a wide input voltage range with a maximum input voltage of up to 32V. It integrates power MOSFETs, including an 80mΩ high-s...
Overview<br/>The CX72GDXXXH series is a high-performance quasi-resonant primary-side regulated power supply IC with high-precision constant voltage (CV) and constant current (CC) output, featuring a b...
Overview<br/>The CX78GD032E is a quasi-resonant flyback power conversion chip with integrated D-GaN, designed for isolated flyback switching power supplies targeting high performance, low standby power, low cost, and high efficiency within 48W.<br/> ...
Overview<br/>The CX78GD048H is a quasi-resonant flyback power conversion chip with integrated D-GaN, designed for isolated flyback switching power supplies targeting high performance, low standby power, low cost, and high efficiency within 36W.<br/> ...
Overview<br/>The CX75GD080BL is a high-frequency, high-performance quasi-resonant AC-DC power switch with an integrated high-voltage GaNFET power device. It is designed for isolated flyback switching power supplies targeting high performance, low sta...
