Synchronous rectification
HOME>PRODUCTS>AC-DC power supply chip>Synchronous rectification

  • 型 号 :

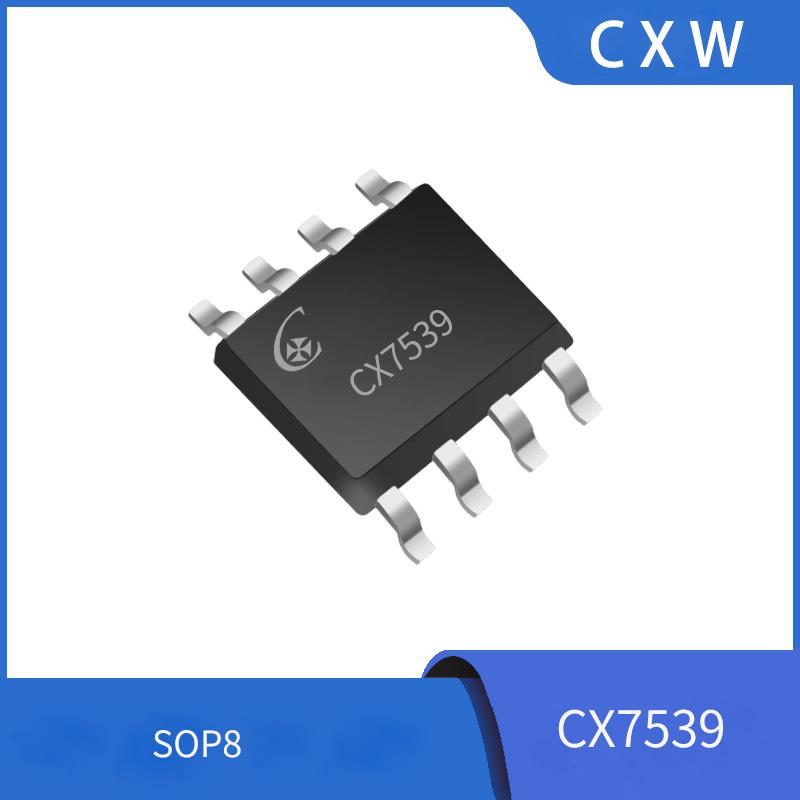

    CX7539

  • 待机功耗 :

    ＜75mW

  • 工作模式 :

    CCM/QR/DCM

  • 控制方式 :

    60V/8mΩ

  • 应 用 :

    PD/QC Fast Charging, Multi-Port USB Charger, Low-Voltage High-Current Power Supply

  • 封 装 :

    SOP-8
样品申领
产品规格书下载

CATEGORY
  • 产品详情

Overview:

CX7539 is a high-performance synchronous rectification control circuit for the secondary side of a switching power supply. In low voltage and high current switching power supply applications, it easily meets the 6-level energy efficiency and is an ideal solution for ultra-low conduction voltage drop rectifier devices.

CX7539 supports switching frequency applications up to 150kHz, as well as switching power supply operating modes such as CCM/QR/DCM. Its extremely low conduction voltage drop produces much less loss than the conduction loss of Schottky diodes, greatly improving the conversion efficiency of the system and significantly reducing the temperature of rectifier devices.

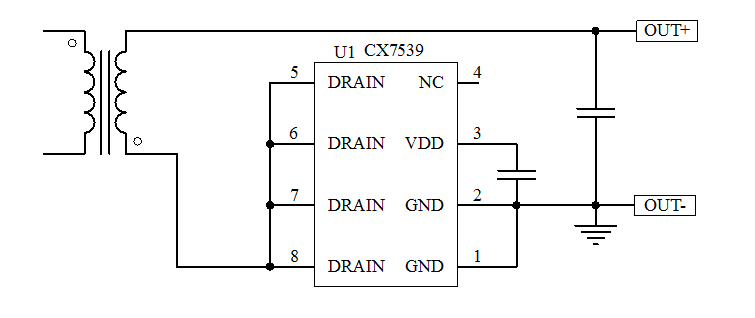

CX7539 is a built-in high-voltage NMOSFET synchronous rectifier switch with extremely low internal resistance which can provide system output of up to 4A or more applications; The IC determines the switching state of integrated MOSFETs by detecting their source and drain voltages, and is compatible with flyback converters in continuous mode, discontinuous, and quasi resonant operating modes.

CX7539 adopts unique VDD power supply technology, which can ensure that the chip will not operate under voltage in both constant current and constant voltage operating states of the primary control system.


Features:

  • Compatible with CCM/QR/DCM modes

  • Unique VDD power supply technology

  • 4.5A driving current ensures fast MOSFET shutdown

  • 600uA low quiescent current

  • Supports switching power supply frequencies up to 150kHz

  • Low output voltage operation

  • Packaging: SOP-8L


Application:

  • PD, QC fast charging power supply

  • Multi port USB charger

  • Low voltage high current switching power supply
