Overview

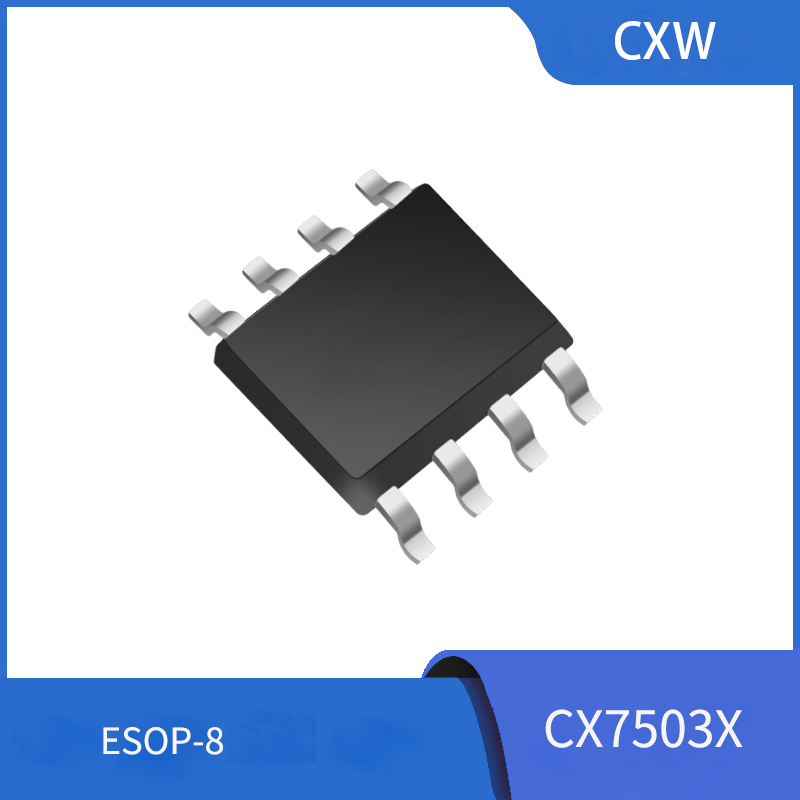

The CX7503BX series is a high-performance quasi-resonant, high-precision constant-voltage and constant-current output performance primary-side power supply chip with built-in high-voltage power MOS tubes.
The CX7503BX series provides extremely comprehensive and high-performance intelligent protection functions, including cycle-by-cycle over-current protection, soft start, chip over-temperature protection, output over-voltage protection, VDD under-voltage lockout protection, VDD over-voltage lockout protection.
The CX7503BX series provides accurate constant voltage, constant current (CV/CC) output without optocoupler and secondary control circuitry and loop compensation while maintaining good stability, good output voltage regulation and high average efficiency, as well as less than 75mW standby power consumption.
The CX7503BX seriesbuilt-inoutputlineloss compensationfunction,lineloss compensationcanbeadjusted byadjustingtheFbdividerresistorresistancetoadjustthePWM/PFMmode of operation to minimize the audio energy, no audio noise in the full load.
The CX7503BX series in SOP-8 package provides an excellent design platform for cost-effective flyback switchingpower supply systemswith ultra-lowstandby power consumption,meeting Level 6 and European Energy Efficiency Standard Eur2.0 applications
Features
Built-inhigh-voltage MOSFETpower switching tubes
High efficiency quasi-resonant operation mode multi-mode primary edge control mode
Using raw-side feedback control, the optocoupler and TL431 can be eliminated
Optimized dynamic response
Standby power consumption <75mW
±4% Constant current, ±2% constant voltage accuracy
Adjustable line loss compensation
Built-in line voltage and primary winding inductance compensation
Built-in adaptive current peak adjustment
Output short-circuit load protection
Work without noise
Power-up soft start
Built-in Leading Edge Blanking (LEB) function
Cycle-by-cycle current limit protection (OCP)
Short-circuit protection for output secondary tubes
Under voltage protection (UVLO), over voltage protection (OVP), VDD voltage clamping protection
| Model | Built-in Mos /RdsON(Ω) | Package | Single Voltage (230V) | Full Voltage (90-264V) |
| CX7503BA | 5.0 | SOP-8 | 10W | 7.5W |
| CX7503BB | 4.0 | SOP-8 | 15W | 12W |
| CX7503BC | 2.2 | SOP-8 | 20W | 16.5W |
Applications
Charger
PDA, digital camera, video camera power adapter
Set-top box power supply
Open Frame Switching Power Supply
Auxiliary power supply for personal computers
CX7538BS is a high-performance secondary side synchronous rectification control circuit for switch-mode power <br/><br/>supplies. It easily meets the Level VI energy efficiency requirements in low-voltage, high-current switch-mode power <br/><br/>supply applications, making it an ideal solution for ultra-low forward voltage drop rectification devices. It also supports <br/><br/>various operating modes of switch-mode power supplies, such as CCM, QR , and DCM . Its extremely low forward <br/><br/>voltage drop results in much less conduction loss compared to Schottky diodes, greatly improving the system&#039;s <br/><br/>conversion efficiency and significantly reducing the temperature of the rectification device.<br/><br/><br/><br/>The CX7538BS chip features an NMOSFET synchronous rectification switch with a built-in voltage tolerance of 60V <br/><br/>and an extremely low internal resistance, with a typical RdsON as low as 12mΩ, providing the system with an output <br/><br/>capability up to 4A. The chip determines its switching state by detecting the source-drain voltage of the built-in <br/><br/>MOSFET, making it compatible with flyback converters in continuous mode, discontinuous mode, and quasi-resonant <br/><br/>operation modes.
Overview
The CX78GD024E is a quasi-resonant flyback power conversion chip with integrated D-GaN, designed for isolated flyback switching power supplies targeting high performance, low standby power, low cost, and high efficiency within 68W.
...
OverviewCX8831CA is a synchronous step‑down converter integrating multiple fast‑charging protocols. It supports USB Type‑C, PD3.2 and PPS protocols, Qualcomm QC2.0/3.0/3.0+, Huawei FCP/SCP/HVSCP, VOOC, MediaTek PE2.0, Samsung AFC, USB BC1.2 DCP, and Apple...
OverviewThe 8831C is a synchronous step‑down converter integrating multiple fast‑charging protocols. It supports USB Type‑C, PD3.2 and PPS protocols, Qualcomm QC2.0/3.0/3.0+, Huawei FCP/SCP/HVSCP, VOOC, MediaTek PE2.0, Samsung AFC, USB BC1.2 DCP, and Appl...
Overview &lt;br/&gt;The CX8823B is a feature-rich, high-performance, highly reliable DC-DC buck converter. &lt;br/&gt;The CX8823B has a wide input voltage range with a maximum input voltage of up to 32V. It integrates power MOSFETs, including an 80mΩ high-s...
Overview<br/>The CX72GDXXXH series is a high-performance quasi-resonant primary-side regulated power supply IC with high-precision constant voltage (CV) and constant current (CC) output, featuring a b...
Overview<br/>The CX78GD032E is a quasi-resonant flyback power conversion chip with integrated D-GaN, designed for isolated flyback switching power supplies targeting high performance, low standby power, low cost, and high efficiency within 48W.<br/> ...
Overview<br/>The CX78GD048H is a quasi-resonant flyback power conversion chip with integrated D-GaN, designed for isolated flyback switching power supplies targeting high performance, low standby power, low cost, and high efficiency within 36W.<br/> ...
Overview<br/>The CX75GD080BL is a high-frequency, high-performance quasi-resonant AC-DC power switch with an integrated high-voltage GaNFET power device. It is designed for isolated flyback switching power supplies targeting high performance, low sta...
