Automotive Grade IC
HOME>PRODUCTS>DC-DC power supply chip>Automotive Grade IC

  • Model No. :

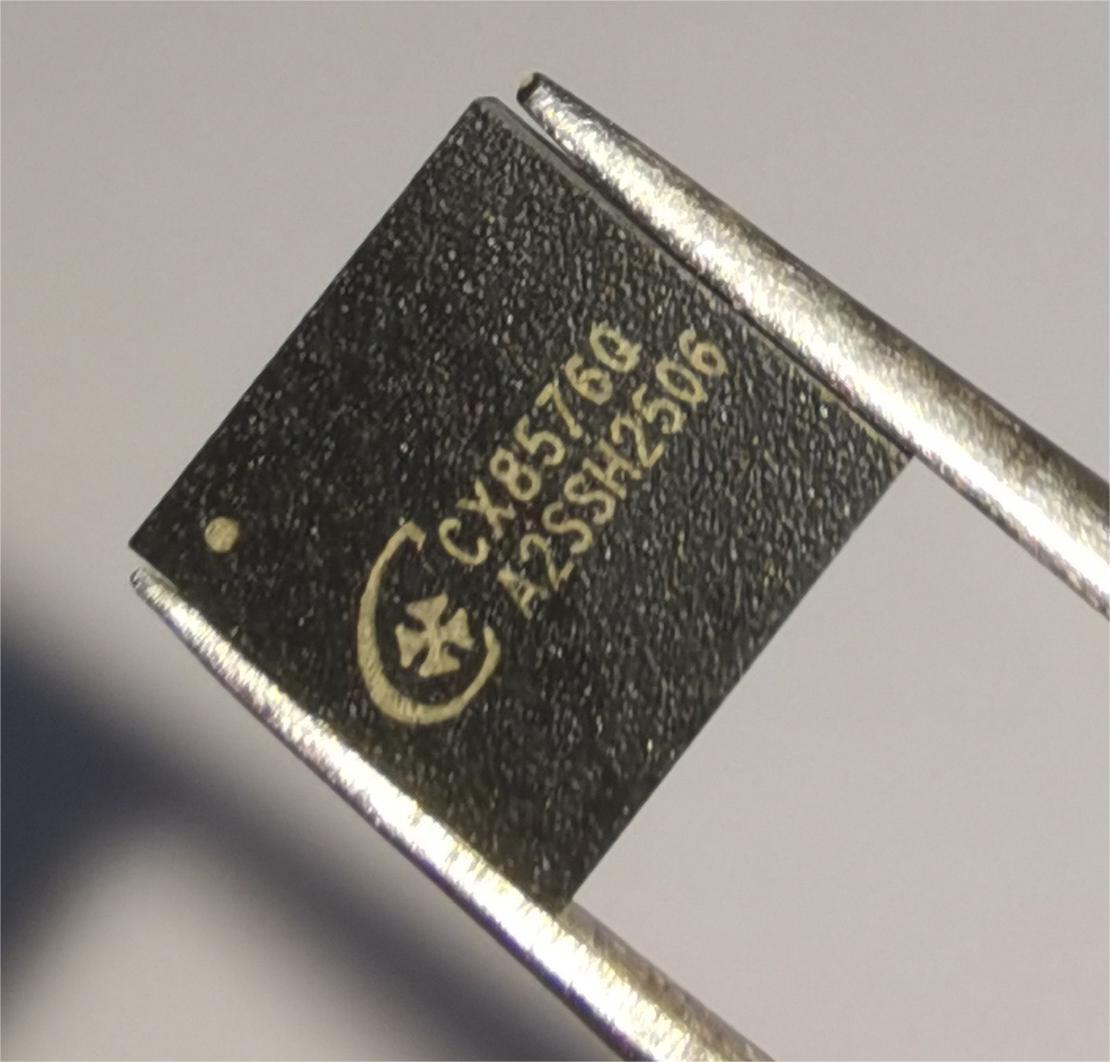

    CX8576Q

  • Withstand voltage :

    40V

  • Output voltage :

    3-30V

  • Output current :

    4.8A

  • Working mode :

    Buck

  • Packaging :

    QFN20L-5×5
Free Sample
Datesheet

CATEGORY
  • product details

Overview

The CX8576Q is a high-efficiency, high-voltage, synchronous step-down DC-DC converter with integrated high-side and low-side power MOSFETs. With a wide input range from 4.75V to 36V, the converter can deliver an output voltage ranging from 0.8V to VIN with up to 4.8A continuous output current. The converter can be configured as a single output with independent constant current (CC) regulation. In the event of output overload or short-circuit, other protection features include cycle-by-cycle current limit, input under and over voltage protection, and thermal shutdown. The CX8576Q also provides programmable cable voltage drop compensation by selecting an appropriate external resistor divider. The switching frequency is internally set to 110kHz.

The CX8576Q is available in a QFN20L-5x5 package.

Features

  • AEC-Q100 Automotive Qualified

  • 4.75V ~ 36V Supply Voltage Range

  • 2% Voltage Reference Accuracy

  • 8% Constant Current Accuracy

  • External Current Limit Setting

  • Programmable Operating Frequency

  • Duty Cycle Range (0~95%)

  • Built-in Adjustable Line Compensation

  • Internal Soft Start 3mS

  • CC/CV Mode Control

  • Internal high-side and low-side Power MOSFET Switches

  • Cycle-by-Cycle Over Current Protection

  • QFN20L-5x5 Package

Applications

  • Car Chargers

  • Portable Charger Devices

  • General-Purpose DC/DC Converters with Current Limit
