Synchronous rectification
HOME>PRODUCTS>AC-DC power supply chip>Synchronous rectification

  • 型 号 :

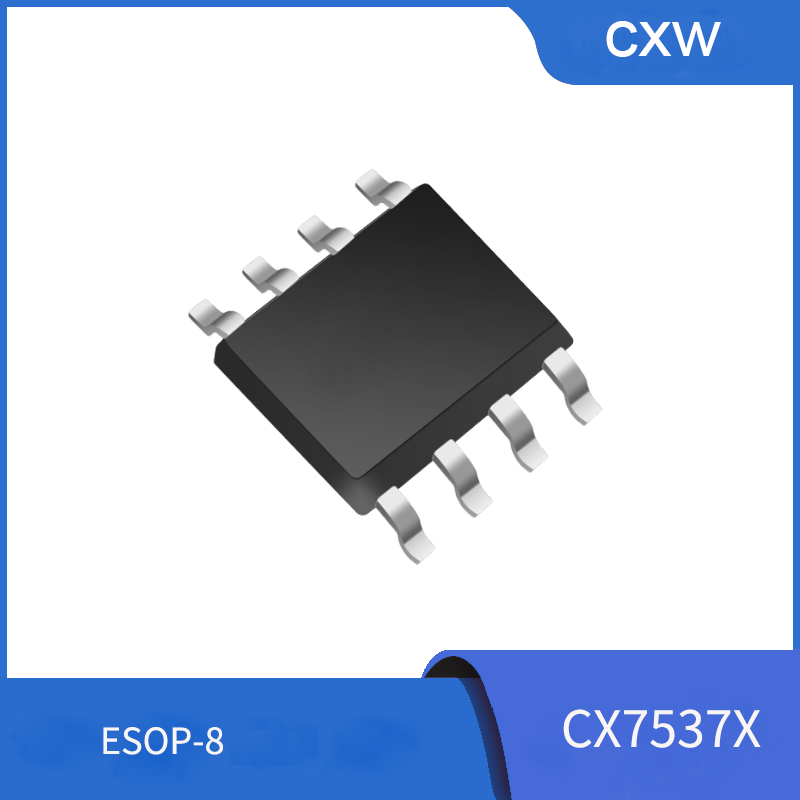

    CX7537BX

  • 待机功耗 :

    ＜150KHz

  • 工作模式 :

    DCM/QR

  • 控制方式 :

    40V/7-19mΩ

  • 应 用 :

    Charger, Adapter, Set-Top Box Power Supply, Auxiliary Power Supply (For 5V Vout)

  • 封 装 :

    SOP-8
样品申领
产品规格书下载

CATEGORY
  • 产品详情

Overview:

CX7537BX is a high-performance secondary side synchronous rectification chip integrated synchronous rectification MOS, suitable for isolated synchronous rectification applications, especially suitable for high efficiency requirements in chargers.

CX7537BX adopts the technology of primary side open detection and secondary side intermittent detection which can effectively avoid driver chip misoperation caused by excitation oscillation.

CX7537BX integrates VCC undervoltage protection, overvoltage clamping, and driver foot anti-interference technologies Improve the conversion efficiency of the system.


Features:

  • Isolated DCM control application

  • Original edge opening judgment

  • Secondary side intermittent judgment

  • VCC undervoltage protection

  • VCC overvoltage clamping


Application:

  • Charger

  • Power adapter

  • Set-top box power supply

  • Auxiliary power supply
