In the era of rapid automotive technology advancement and the growing demand for digital devices, CXW technology has introduced the 100W dual USB-C and USB-A car charger solution. This innovative solution features two USB-C ports (C1 and C2) and one USB-A port, designed to meet the fast charging needs of multiple devices simultaneously. The C1 port supports up to 100W fast charging, while the total output power of the charger is 65W, with dual 5V shared output to achieve a 100W multi-port power distribution.

This 45W GaN dual-port fast charger is designed with three PCBA boards and comes equipped with dual USB-C output ports. Both ports support fast charging, ensuring that two different devices can be charged rapidly at the same time.

Key Features and Specifications:

1. High Output Power

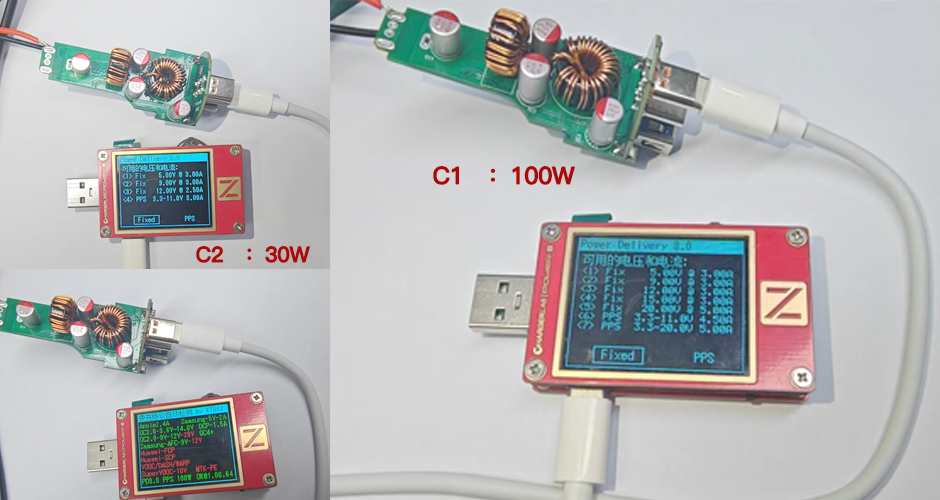

• C1 Port (USB-C): Supports up to 100W fast charging.

• C2 Port (USB-C): Supports up to 30W fast charging.

• USB-A Port: Supports up to 18W QC fast charging.

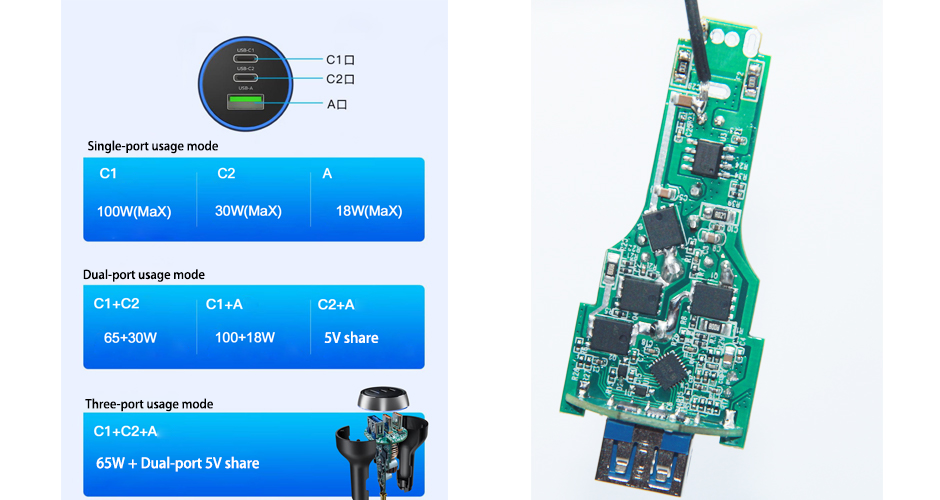

      Combined Output:

• C1 + C2: Up to 95W
• C1 + A: Up to 118W

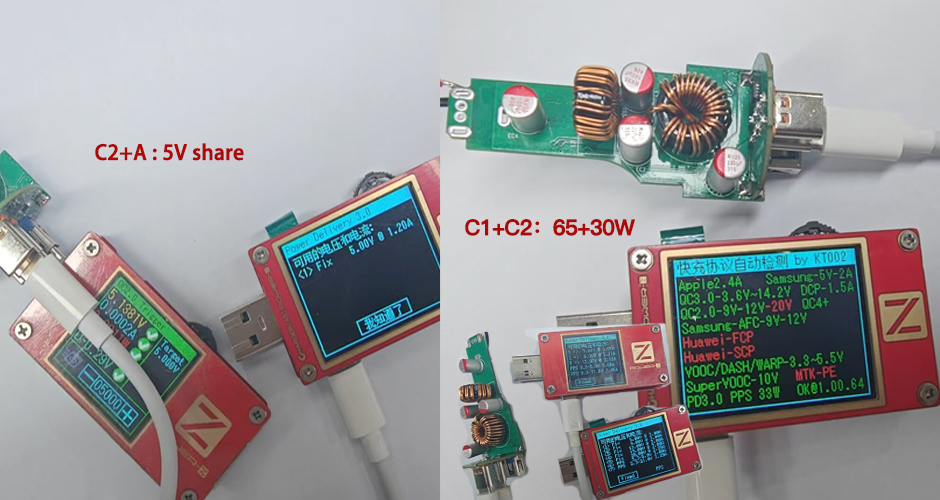

• C2 + A: 5V shared
• C1 + C2 + A: 65W + 5V shared

2. Advanced Circuit Design

• The charger is designed with a combination of one buck-boost circuit and one buck circuit. The buck-boost circuit uses the CX8836 controller, while the buck circuit uses CX8855/CX8576 converters.
• The CX8836 is a highly efficient synchronous 4-switch buck-boost DC-DC controller that supports up to 10A output current and can provide up to 120W of power output

3. Compact and Efficient Design

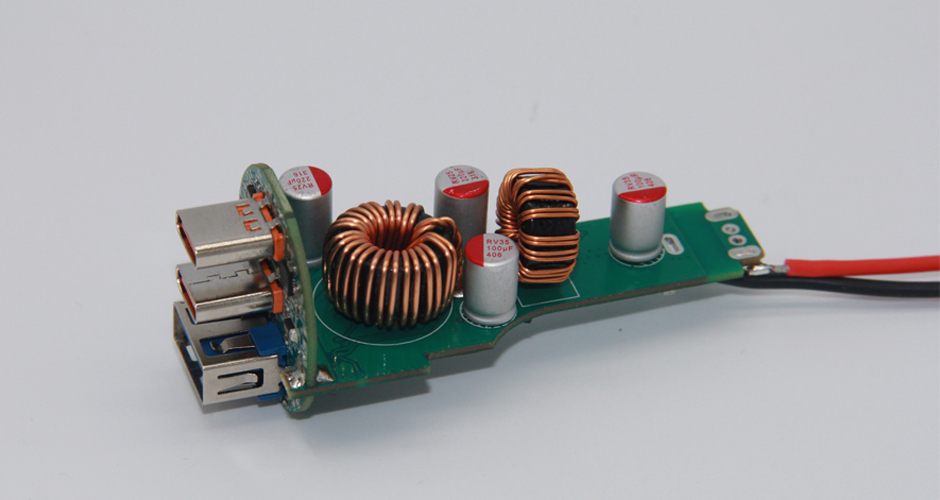

• The charger is assembled using two PCBA boards, optimizing space and ensuring a compact layout.
• The front board includes two magnetic ring inductors and four solid filter capacitors. The bottom output board features three VBUS switch tubes (CX3419) and two protocol ICs.

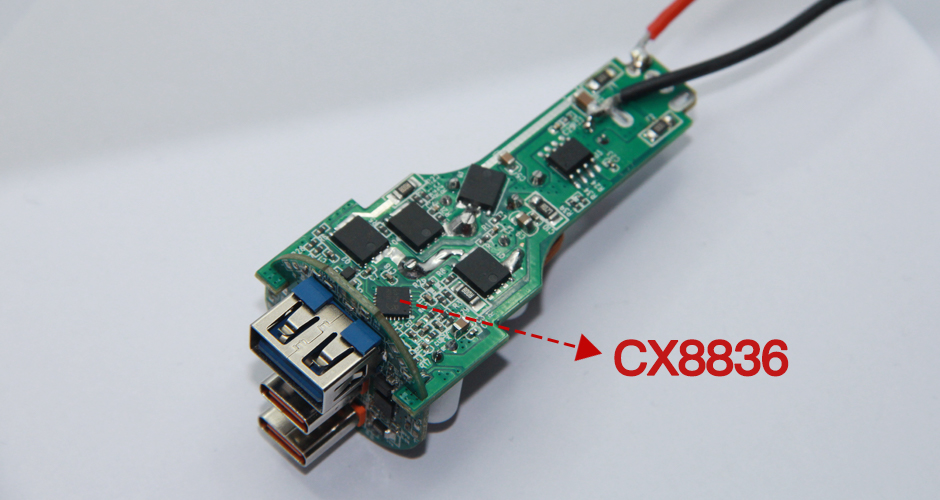

• The back board includes the CX8836 buck-boost controller, four MOSFETs forming an H-bridge, and one CX8833 buck converter

4. Wide Protocol Compatibility

USB-C1 Port:

• Supports Apple 2.4A, QC2.0, QC3.0, AFC, PD3.0, and PPS fast charging.
• Fixed voltage levels: 5V, 9V, 12V, 15V, 20V/5A.
• PPS voltage levels: 3.3-11V/4.5A, 3.3-20V/5A

USB-C2 Port

• Supports Apple 2.4A, QC2.0, QC3.0, AFC, VOOC, PD3.0, and PPS fast charging.
• Fixed voltage levels: 5V, 9V, 12V/2.5A.
• PPS voltage levels: 3.3-11V/4.5A, 3.3-11V/3A

5. Safety and Efficiency

• The charger is designed with built-in safety features to protect devices from overcharging, short circuits, and excessive voltage.
• The use of high-grade fire-resistant PC material ensures the charger is safe to use in various conditions

Applications

• Laptops: Supports USB-C charging for devices like the MacBook Pro.
• Tablets: Ensures quick and efficient charging for tablets during long drives.
• Smartphones: Compatible with both Apple and Android devices, providing fast charging capabilities

Conclusion

The 100W Dual USB-C and USB-A Car Charger from CXW Technology is a versatile and powerful solution for modern charging needs. With its high output power, multiple charging ports, and advanced circuit design, it ensures fast and efficient charging for multiple devices simultaneously. The wide protocol compatibility and built-in safety features make it a reliable choice for both personal and professional use.
