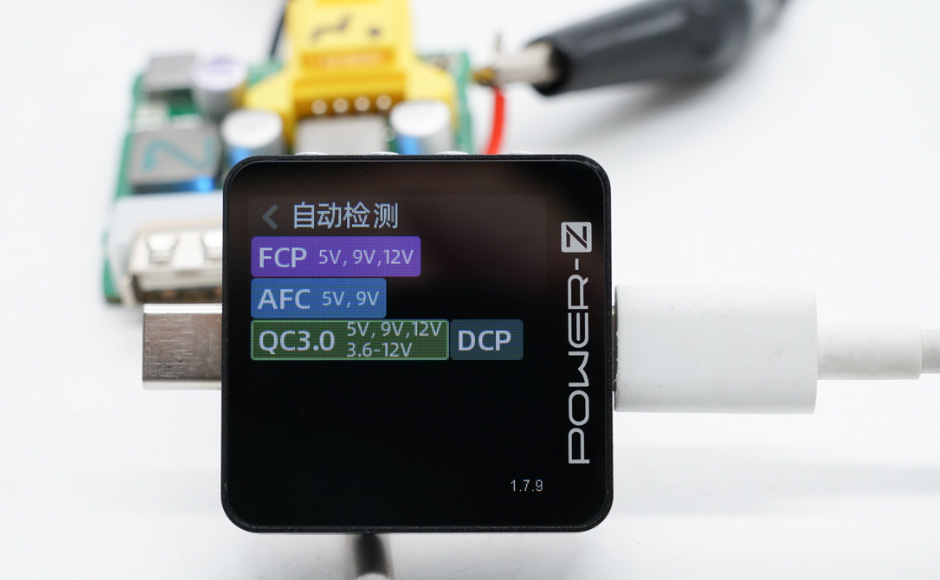

This is a BYD-Han series dual USB-A port car charging module, this car charger uses CX8576Q, an automotive grade synchronous buck converter CX8576Q + fast charging protocol chip CX2601, support for fast charging output, the actual test support FCP, AFC, QC3.0 fast charging, to meet the fast charging needs of mainstream Android phones. This charging module adopts the snap assembly design, installation and disassembly are very convenient, the next will be the analysis of this front-loaded car charger and power test.

BYD-Han series car charging module appearance:

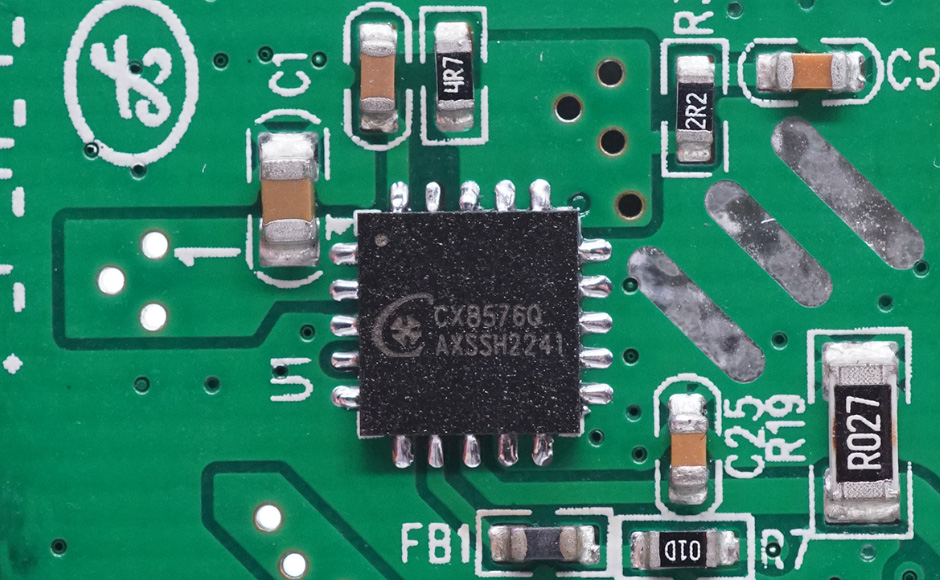

This car charger has a built-in CX8576Q automotive grade synchronous buck converter, which is a 36V input withstand voltage, 4.8A output current synchronous buck converter that meets AEC-Q100 automotive grade certification. The chip has an internal integrated power MOS, supports external current limit setting, programmable switching frequency, and built-in adjustable line loss compensation. The chip is equipped with constant voltage and constant current control and cycle-by-cycle current limiting, and is packaged in a QFN5*5-20L package.

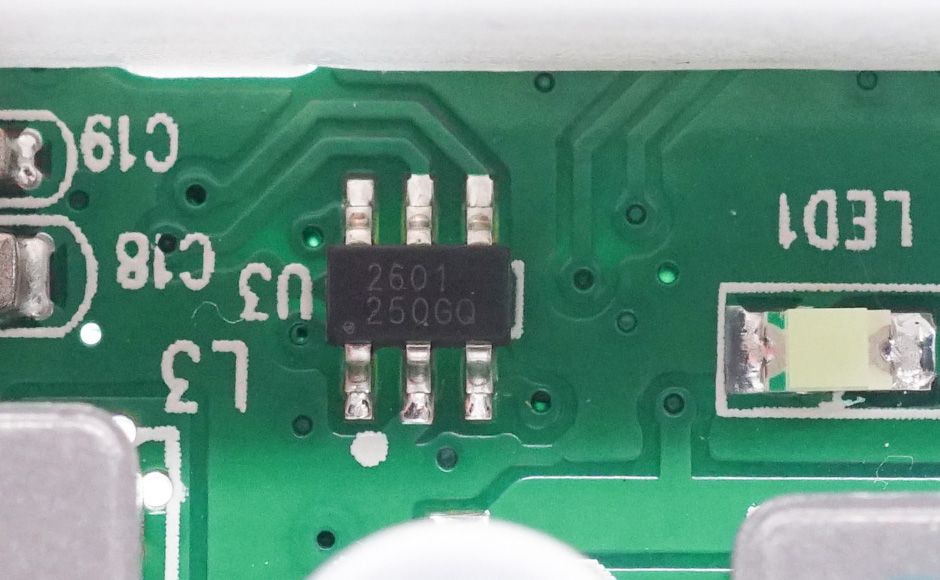

The USB-A port protocol chip adopts CX2601 in SOT23-6 package, which is a multi-protocol fast-charging protocol chip that can automatically switch the applicable fast-charging protocol for the connected device, supporting Huawei FCP fast-charging, Samsung AFC fast-charging, QC3.0 and QC2.0 fast-charging, and Apple 2.4A charging.CX2601 also supports the high-voltage fast-charging function through EN pin control, which is more flexible in application. The CX2601 also supports the control of high-voltage fast charging via the EN pin, which makes the application more flexible. The chip supports fast charging adapter, car charging, mobile power and other applications.

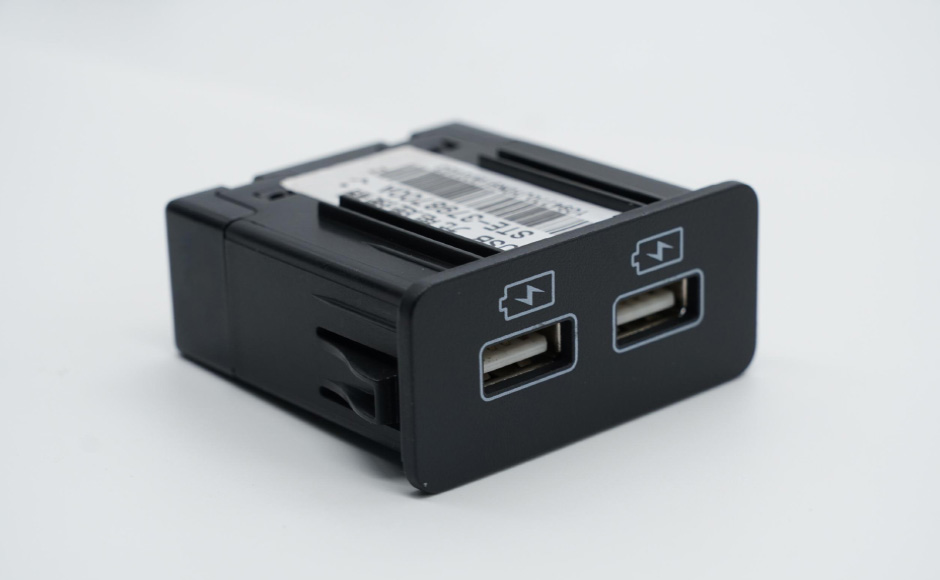

This dual USB-A port car charger from BYD is a front-loading design with a black housing that is secured to the cover using a carabiner, and the housing is also secured with a carabiner for easy assembly. The car charger uses a pin connection for power supply, and provides two USB-A fast charging ports, built-in indicator lights to facilitate the search for the location of the car charger, and supports fast charging output, to meet the fast charging needs of mainstream brands of Android phones.

You can see this car charger internal use CX8576Q automotive grade synchronous buck converter with CX2601 protocol chip to achieve the buck fast charging function, buck converter built-in MOS, with perfect protection, peripheral components streamlined, very suitable for car charging and other buck circuit applications.CX2601 support for Huawei FCP fast charging, Samsung AFC fast charging and QC3.0 fast charging, and also support Apple2.4A charging, and supports the EN pin to control the output of fast charging, the chip has low standby power consumption, and flexible use.

Recently, CXW Technology's automotive-grade chips have officially entered many OEMs, such as BYD, Changan, Geely, ZEEKR, Chery, AITO and other mainstream automotive brands. The joint cooperation with famous car companies proves that its products have many advantages in performance, quality and reliability. In the field of front-mounted vehicle charging, CXW echnology has launched automotive-grade fast charging solutions of different power segments to provide customers with more choices, and build up momentum and empowerment to promote the development of new energy automobile industry.
