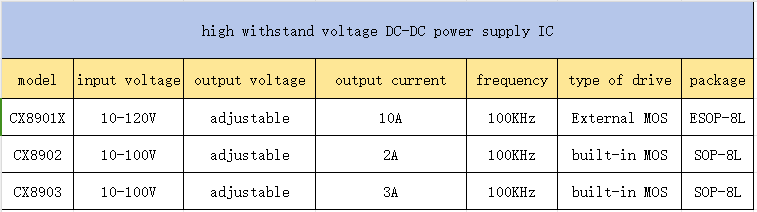

CX8901X,10-120V wide input voltage, built-in MOS, 10A large current asynchronous DC-DC buck scheme, and ESOP-8 package;

CX8903,10-100V wide input voltage, external MOS, 3A current asynchronous DC-DC buck scheme, SOP-8L package;

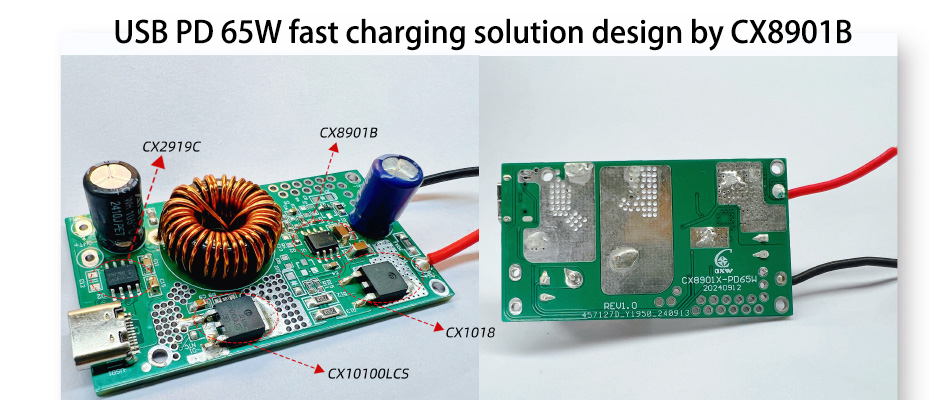

CX8901B+CX2919C: Fast charging scheme of mobile phone charger for electric vehicle, with maximum output power of 65W.

The main features of this scheme are:

1. The input voltage range is 10VDC~100VDC.

2, EN=1 input standby power consumption ≤2.6mA @100VDC.

3. Output 5VDC/3A, 9VDC/3A, 12VDC/3A, 15VDC/3A, 20VDC/3.25A

4. The total output power is 65W

5. The average conversion efficiency of full voltage is 5V=85.30%, 9V=89.72%, 12V=91.69%, 15V=93.04% and 20V=94.54%.

6. Output ripple ≤250mV

7. It has the functions of output over-current protection, short-circuit protection and over-temperature protection.

CX8901X is a high withstand voltage synchronous buck converter with an input voltage range of 10V-120V. CX8901X provides a large current of more than 10A.

CX8901X has the characteristics of low standby power consumption, high efficiency, low ripple, excellent bus voltage regulation rate and load regulation rate.

CX8901X can set the output constant voltage value by setting the voltage dividing resistor of FB pin.

CX8901X series adopts PWM control mode with fixed frequency, and the typical switching frequency is 100KHz. Under light load, it will enter the cycle skipping mode to obtain high conversion efficiency. The CX8901X series integrates the functions of soft start, over-temperature protection circuit, output short-circuit protection, current limiting protection and cycle-by-cycle current detection to improve the system reliability.

The CX8901X series is packaged in ESOP-8L and has a minimalist periphery, which is suitable for DC-DC buck applications with wide input and high power.

Features:

Enable pin turn-off to achieve zero power consumption

Wide voltage input range from 10V to 120V.

Minimalist peripheral device

The output current of more than 10A can be achieved with external MOS transistor.

Output short-circuit locking protection/output short-circuit hiccup protection (adjustment)

Over temperature protection

Cycle-by-cycle term flow protection

The output voltage is flexible and adjustable

ESOP-8L package

Fast charging protocol products have a variety of options, such as port A, port C and port A+C. The fast charging protocol chip supports mainstream mobile phone brands in the market, and the super fast charging logo is displayed on the mobile phone. How to choose the type? You need to select the right products according to your scheme requirements.
