Summary:

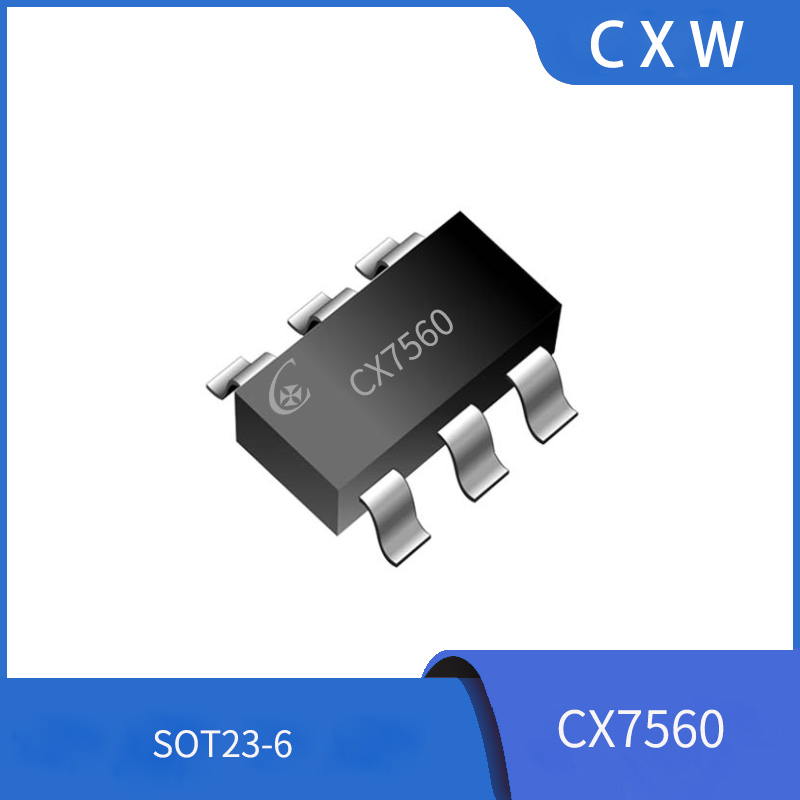

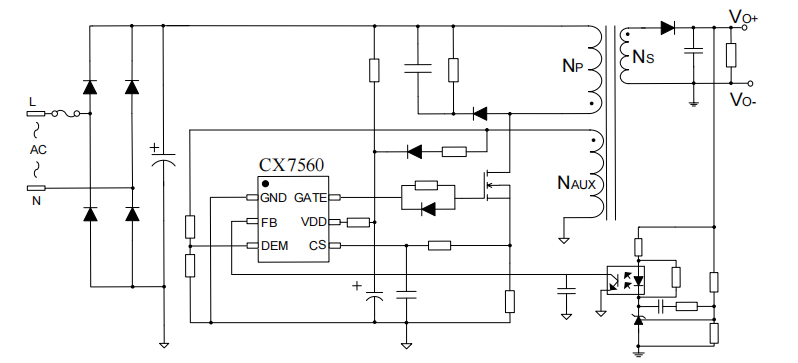

CX7560 is a high-performance, multi mode PWM control chip. The chip can work in frequency hopping and green modes to reduce losses during no-load and light load, as well as QR and CCM modes to improve the overall efficiency of the machine.
CX7560 only requires a small amount of current during startup and operation, and a large resistor can be used in the startup circuit to further reduce power consumption during standby.
CX7560 has multiple built-in protections, including: input voltage low protection (Brown out), input voltage high protection (Line ovp), output voltage overvoltage protection (VO-OVP), output diode short circuit protection, cycle by cycle overcurrent protection (OCP), overload protection (OLP), VDD overvoltage protection (OVP), VDD undervoltage protection (UVLO), over temperature protection (OTP), etc.
CX7560 is packaged in SOT23-6.
Characteristic:
Standby power consumption below 75mW within the full voltage range
Multiple working modes: CCM @ heavy load, QR @ medium load
Green Mode @ light load, Burst Mode @ empty load
Noisy operation
Built-in frequency jitter function to improve EMI performance
Built-in soft start function to reduce power tube stress
Low starting current and low working current
Input voltage low detection (Brown out) function
Input voltage high detection (Line ovp) function
Built-in synchronous harmonic compensation
Built-in front edge blanking function
Application:
Mobile phone and digital camera chargers
Small power adapter
AC/DC open switch power supply
Set-top box power supply
Overview<br/>The CX78GD032E is a quasi-resonant flyback power conversion chip with integrated D-GaN, designed for isolated flyback switching power supplies targeting high performance, low standby power, low cost, and high efficiency within 48W.<br/> ...
Overview<br/>The CX78GD048H is a quasi-resonant flyback power conversion chip with integrated D-GaN, designed for isolated flyback switching power supplies targeting high performance, low standby power, low cost, and high efficiency within 36W.<br/> ...
Overview<br/>The CX75GD080BL is a high-frequency, high-performance quasi-resonant AC-DC power switch with an integrated high-voltage GaNFET power device. It is designed for isolated flyback switching power supplies targeting high performance, low sta...
Overview
The CX8831CQ is a synchronous buck converter with multiple integrated fast charging protocols. It supports USB Type-C and PD3.2 protocols, including PPS, Qualcomm QC2.0/3.0/3.0+, Huawei FCP/SCP/HVSCP, VOOC, MediaTek PE2.0, Samsung ...
Overview
The CX8836 is a four-switch synchronous buck-boost control IC featuring a wide input voltage range of DC 4.5V to 40V and a wide output voltage range of DC 3V to 25V.
The CX8836 employs current-mode control in both buck and boost operation...
Overview<br/><br/>The CX8360 is a 30V/6A DC-DC buck converter with integrated dual N-channel power transistors. It employs an advanced COT architecture, enabling the chip to deliver high-performance load response and input voltage regulation capability.&lt;b...
Overview<br/>The CX8560 is a wide-input voltage switching buck DC-DC converter capable of operating in either CV (constant voltage) or CC (constant current) mode. It features a maximum input voltage rating of 66V and operates within an input voltage range...
Overview
The CX78GD024E is a quasi-resonant flyback power conversion chip with integrated D-GaN, designed for isolated flyback switching power supplies targeting high performance, low standby power, low cost, and high efficiency within 68W.
...
Overview
The CX7806 is a quasi-resonant flyback power control chip with a built-in 14mR NMOSFET driver for D-GaN, designed for applications up to 68W.
Under no-load, light-load, or heavy-load conditions, the CX7806 automatically switche...
