Overview
The CX7528 is a current-mode PWM control chip with a built-in high-voltage power MOSFET, suitable for applications with power up to 25W. It operates at a fixed switching frequency in PWM mode, which is precisely set internally. Under no-load or light-load conditions, the operating frequency is adjusted internally by the chip. The chip can operate in green mode to reduce losses under light load and improve overall efficiency. It requires very low current during startup and operation, allowing the use of a large resistor in the startup circuit to further reduce standby power consumption.
The chip includes a built-in slope compensation circuit to avoid sub-harmonic oscillation when operating at a large duty cycle, improving system stability.
CX7528 features a built-in leading-edge blanking time to eliminate the impact of the reverse recovery current of the diode in the snubber circuit on the IC.
CX7528 adopts frequency jitter technology, which can effectively improve the system's EMI performance. The system's burst frequency is set above the audio frequency (22KHz), avoiding audible noise during operation.
CX7528 incorporates multiple protection features, including cycle-by-cycle current limiting (OCP), VDD over-voltage protection (OVP), VDD over-voltage clamp & under-voltage lockout (UVLO), over-temperature protection (OTP), etc. The soft driver structure helps improve the system's EMI characteristics.
Features
- Standby power consumption less than 75mW for full voltage range (90Vac-265Vac) input
- Built-in soft start to reduce Vds stress on the MOSFET
- Frequency jitter function for improved EMI performance
- Burst mode operation to improve light load efficiency and reduce standby power consumption
- Fixed 65KHz switching frequency
- Built-in synchronous slope compensation
- Low startup current and low operating current
- Built-in leading-edge blanking (LEB) function
- Built-in overload protection (OLP)
- Cycle-by-cycle current limiting (OCP)
- VDD over-voltage protection, under-voltage lockout (UVLO), VDD voltage clamping
- Secondary side output diode short circuit protection
- Over-temperature protection (OTP)

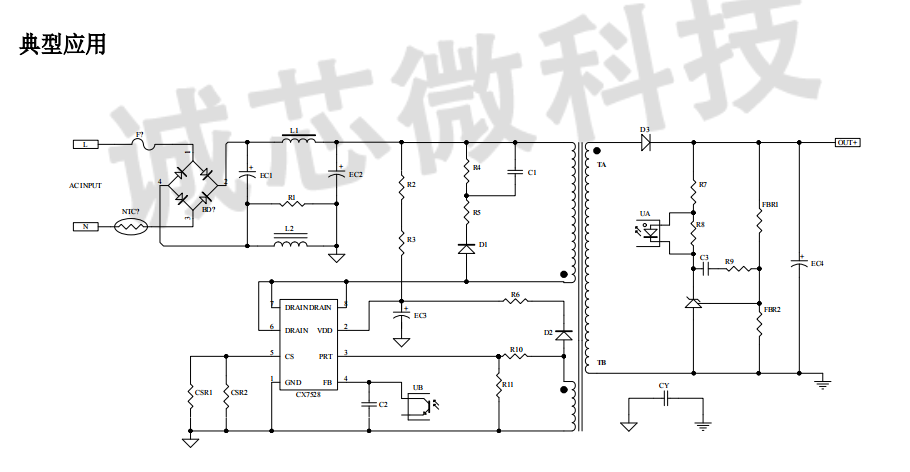

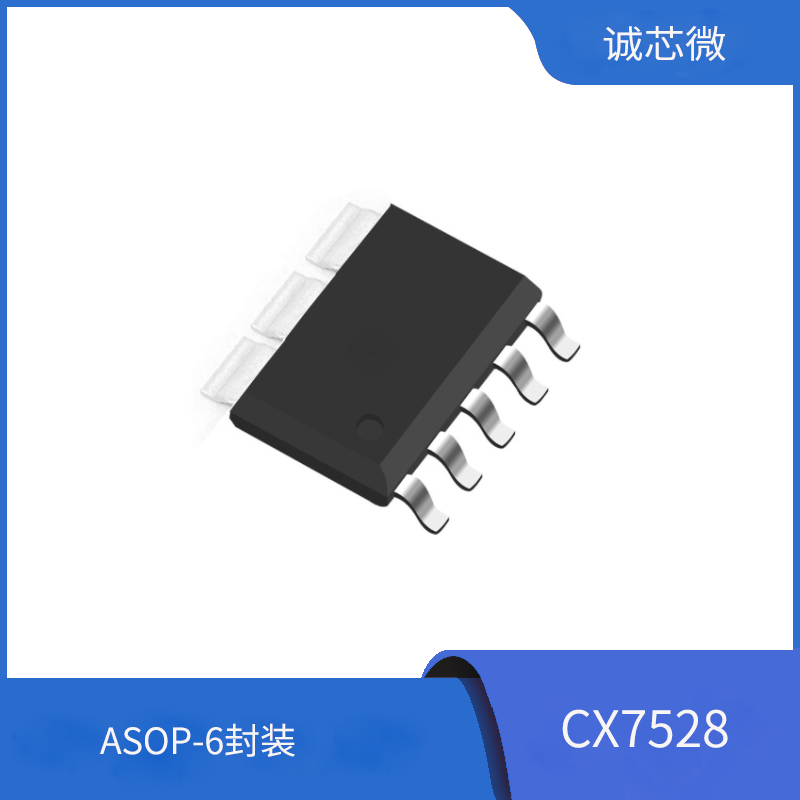

- ASOP6 package
Applications
- Chargers
- Power adapters for PDAs, digital cameras, camcorders
- Set-top box power supplies
- Open-frame switching power supplies
- PC auxiliary power
CX7538BS is a high-performance secondary side synchronous rectification control circuit for switch-mode power <br/><br/>supplies. It easily meets the Level VI energy efficiency requirements in low-voltage, high-current switch-mode power <br/><br/>supply applications, making it an ideal solution for ultra-low forward voltage drop rectification devices. It also supports <br/><br/>various operating modes of switch-mode power supplies, such as CCM, QR , and DCM . Its extremely low forward <br/><br/>voltage drop results in much less conduction loss compared to Schottky diodes, greatly improving the system&#039;s <br/><br/>conversion efficiency and significantly reducing the temperature of the rectification device.<br/><br/><br/><br/>The CX7538BS chip features an NMOSFET synchronous rectification switch with a built-in voltage tolerance of 60V <br/><br/>and an extremely low internal resistance, with a typical RdsON as low as 12mΩ, providing the system with an output <br/><br/>capability up to 4A. The chip determines its switching state by detecting the source-drain voltage of the built-in <br/><br/>MOSFET, making it compatible with flyback converters in continuous mode, discontinuous mode, and quasi-resonant <br/><br/>operation modes.
Overview
The CX78GD024E is a quasi-resonant flyback power conversion chip with integrated D-GaN, designed for isolated flyback switching power supplies targeting high performance, low standby power, low cost, and high efficiency within 68W.
...
OverviewCX8831CA is a synchronous step‑down converter integrating multiple fast‑charging protocols. It supports USB Type‑C, PD3.2 and PPS protocols, Qualcomm QC2.0/3.0/3.0+, Huawei FCP/SCP/HVSCP, VOOC, MediaTek PE2.0, Samsung AFC, USB BC1.2 DCP, and Apple...
OverviewThe 8831C is a synchronous step‑down converter integrating multiple fast‑charging protocols. It supports USB Type‑C, PD3.2 and PPS protocols, Qualcomm QC2.0/3.0/3.0+, Huawei FCP/SCP/HVSCP, VOOC, MediaTek PE2.0, Samsung AFC, USB BC1.2 DCP, and Appl...
Overview &lt;br/&gt;The CX8823B is a feature-rich, high-performance, highly reliable DC-DC buck converter. &lt;br/&gt;The CX8823B has a wide input voltage range with a maximum input voltage of up to 32V. It integrates power MOSFETs, including an 80mΩ high-s...
Overview<br/>The CX72GDXXXH series is a high-performance quasi-resonant primary-side regulated power supply IC with high-precision constant voltage (CV) and constant current (CC) output, featuring a b...
Overview<br/>The CX78GD032E is a quasi-resonant flyback power conversion chip with integrated D-GaN, designed for isolated flyback switching power supplies targeting high performance, low standby power, low cost, and high efficiency within 48W.<br/> ...
Overview<br/>The CX78GD048H is a quasi-resonant flyback power conversion chip with integrated D-GaN, designed for isolated flyback switching power supplies targeting high performance, low standby power, low cost, and high efficiency within 36W.<br/> ...
Overview<br/>The CX75GD080BL is a high-frequency, high-performance quasi-resonant AC-DC power switch with an integrated high-voltage GaNFET power device. It is designed for isolated flyback switching power supplies targeting high performance, low sta...
