DC-DC power supply chip
HOME>PRODUCTS>DC-DC power supply chip

  • Model No. :

    CX8576Q

  • Withstand voltage :

    36V

  • Output voltage :

    ADJ

  • Output current :

    4.8A

  • Working mode :

    synchronous

  • Packaging :

    QFN5*5*20
Free Sample
Datesheet

CATEGORY
  • product details

CX8576Q, 36V withstand voltage 5A high current synchronous step-down converter, compliant with AECQ100 certification

CX8576Q, 4.75-36V withstand voltage, built-in dual N MOS, 4.8A high current DC-DC synchronous step-down converter

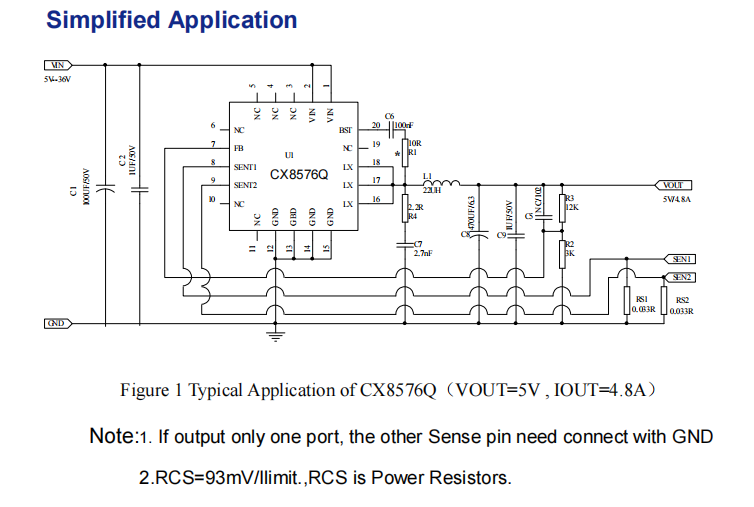

CX8576Q is an efficient, high-voltage, and synchronous buck system, which is a DC-DC converter that integrates high and low side power.

The converter has a wide input range from 4.75V to 36V, an output voltage from 0.8V to VIN, and a continuous output current of up to 4.8A.

The converter can be configured as a single output, each with independent constant current (CC) regulation, in the event of output overload or short circuit.

Other protection functions include cycle by cycle current limitation, input voltage and overvoltage protection, and thermal shutdown.

The CX8576Q also provides programmable cable voltage drop compensation by selecting appropriate external resistance voltage dividers. The switching frequency is internally set to 110 kHz.

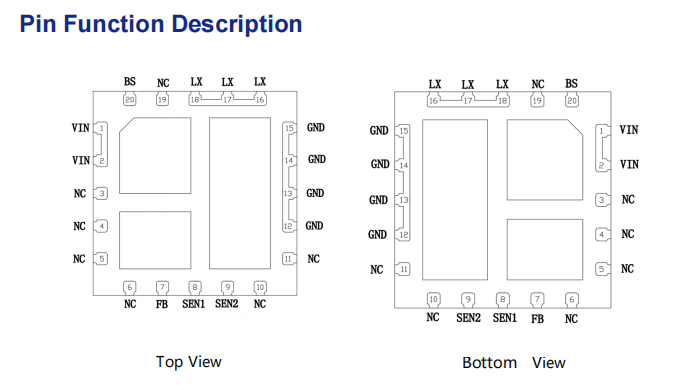

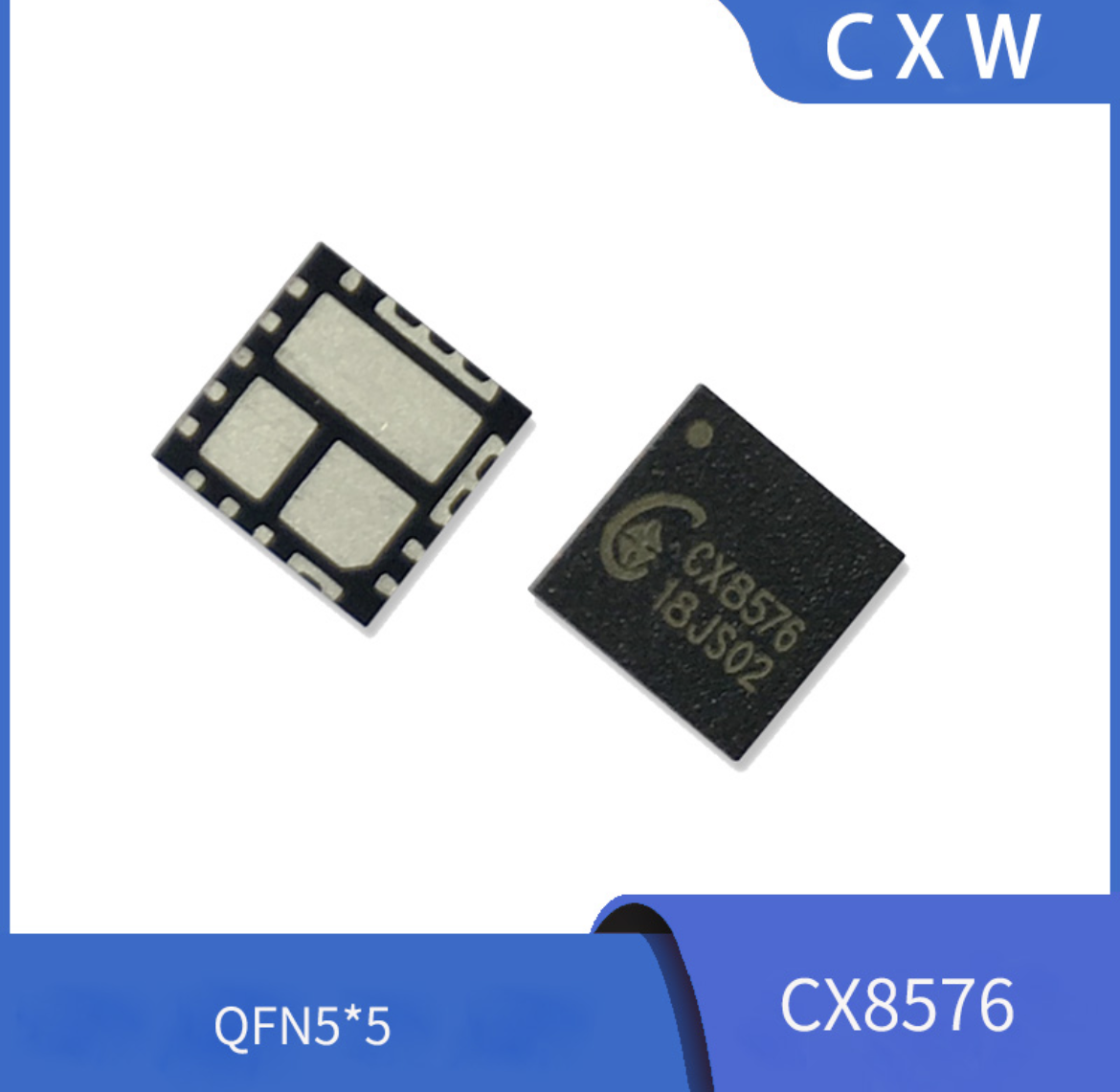

CX8576Q adopts QFN20L-5 × 5 Packaging


Characteristic:

AEC-Q100 Automotive Qualification Certification

4.75 V~36V power supply voltage range

2% voltage reference accuracy

8% constant current accuracy

External current limit setting

Programmable operating frequency

Duty cycle range (0-95%)

Built-in adjustable line compensation

Internal soft start for 3 ms

CC/CV mode control

Internal high and low side power MOSFET switches

Cyclic overcurrent protection

Application:

Car chargers, portable charger devices, universal DC, DC converters, and current limitations
